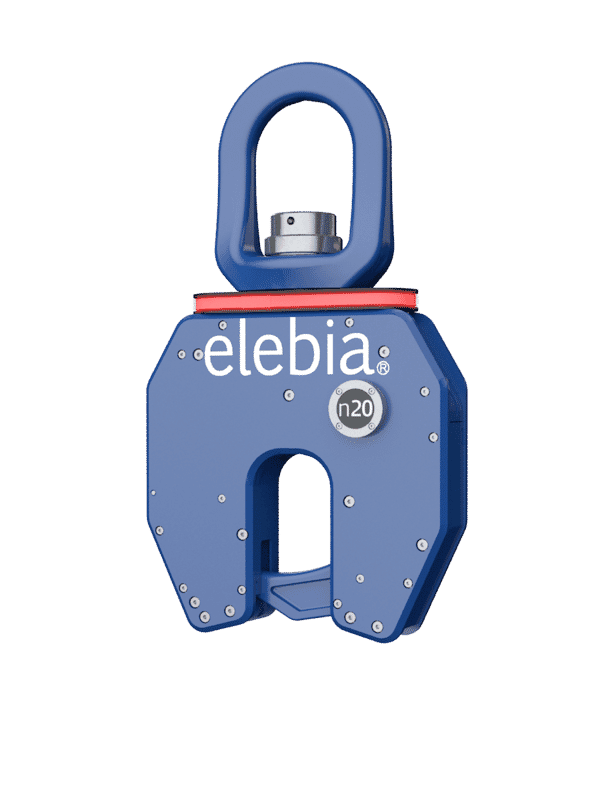

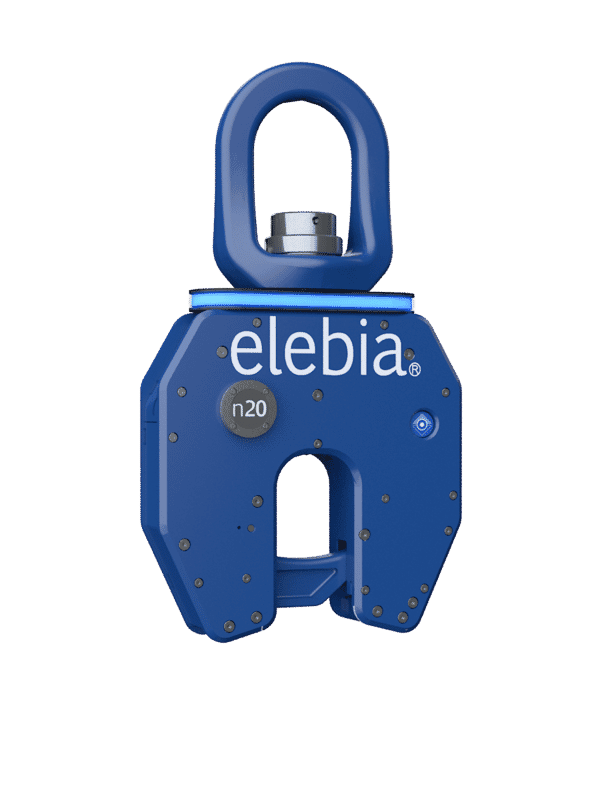

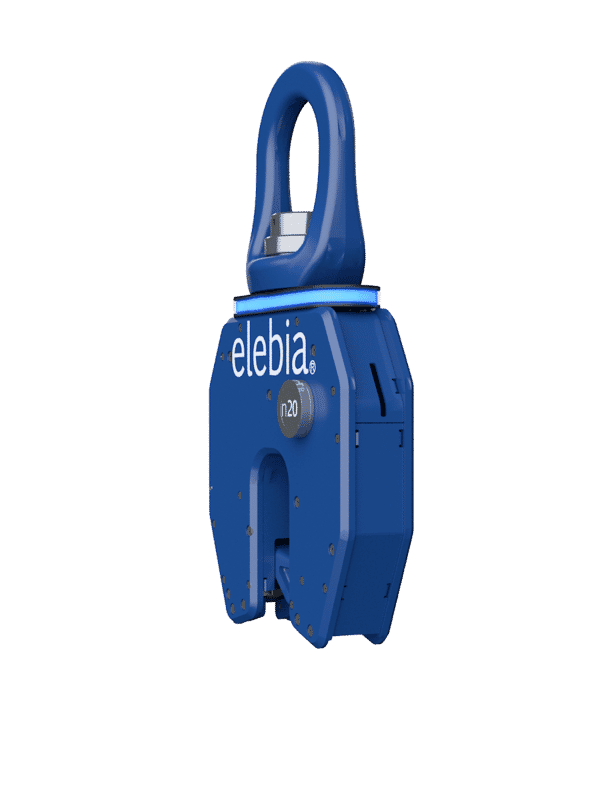

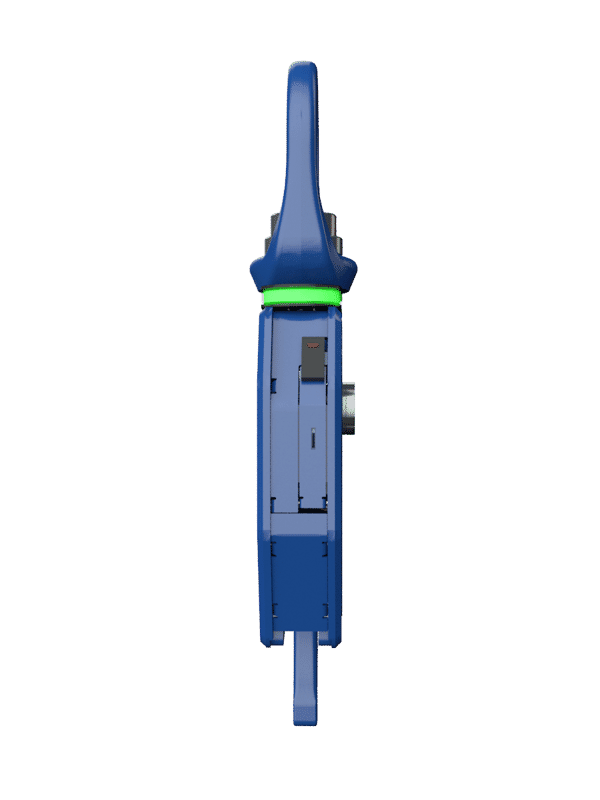

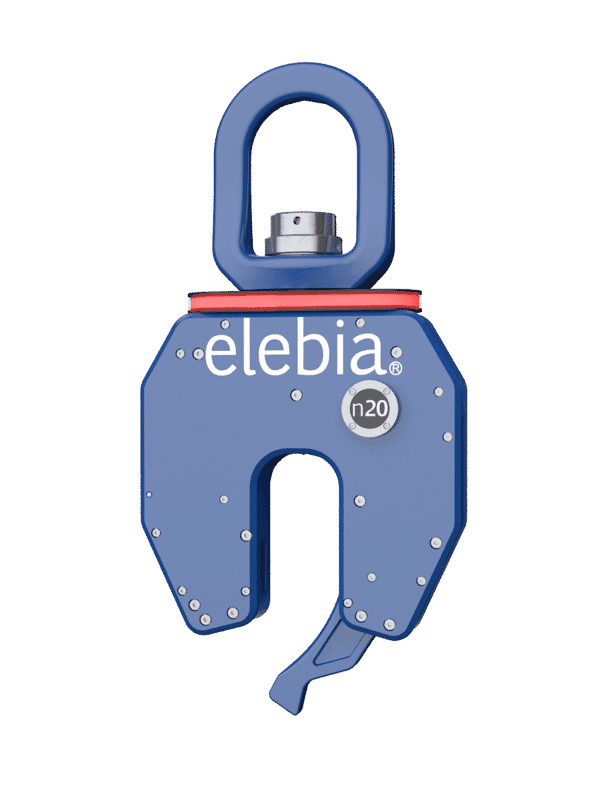

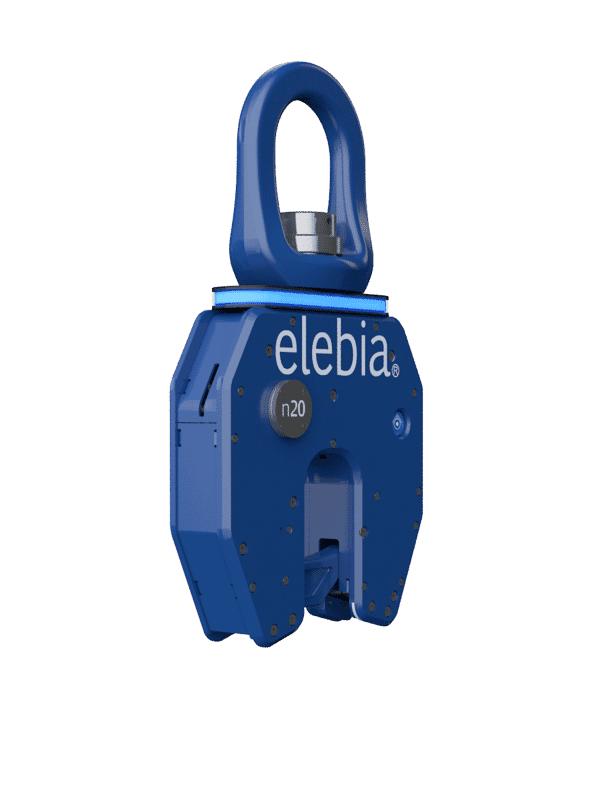

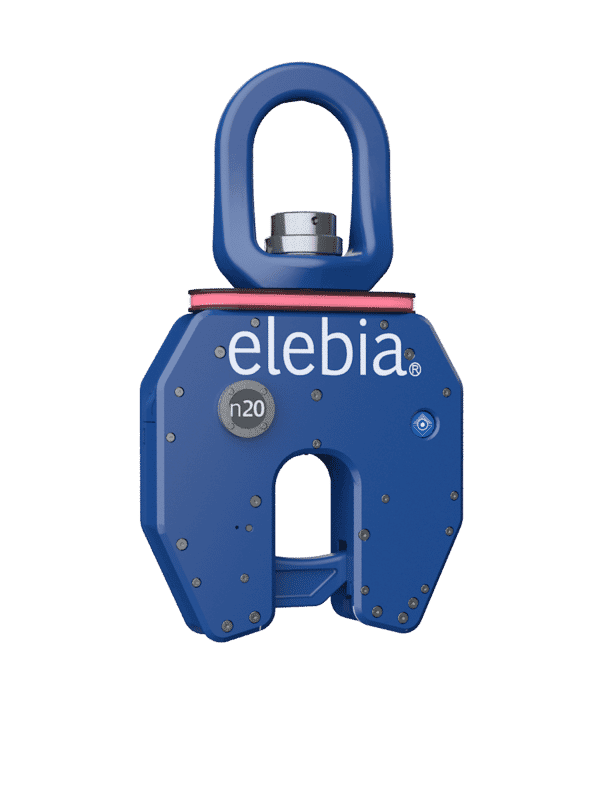

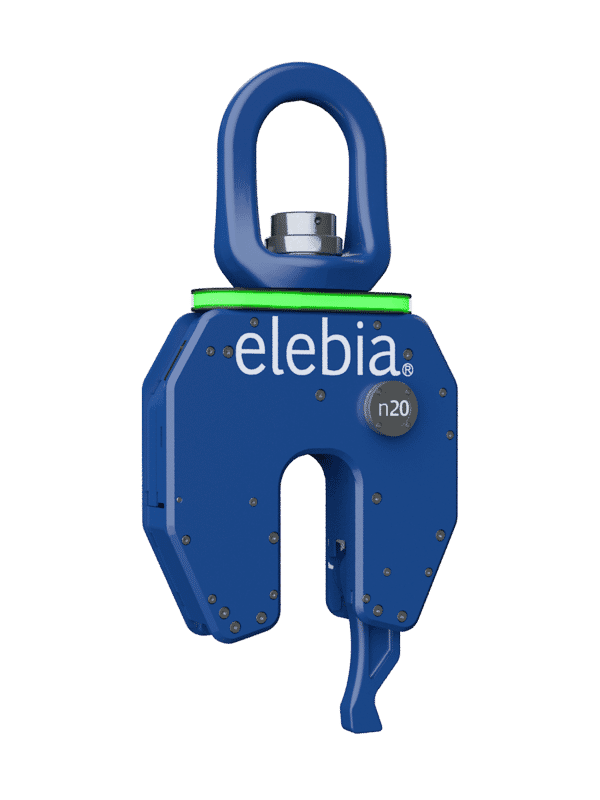

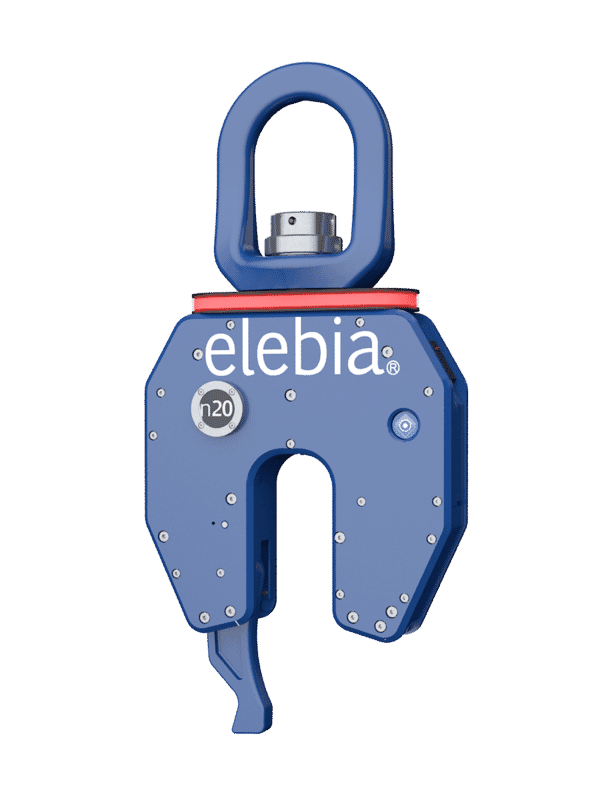

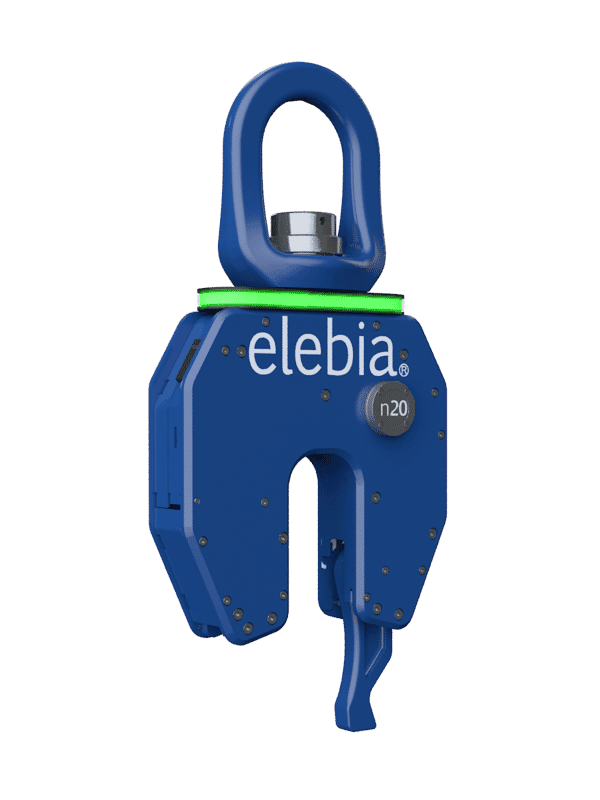

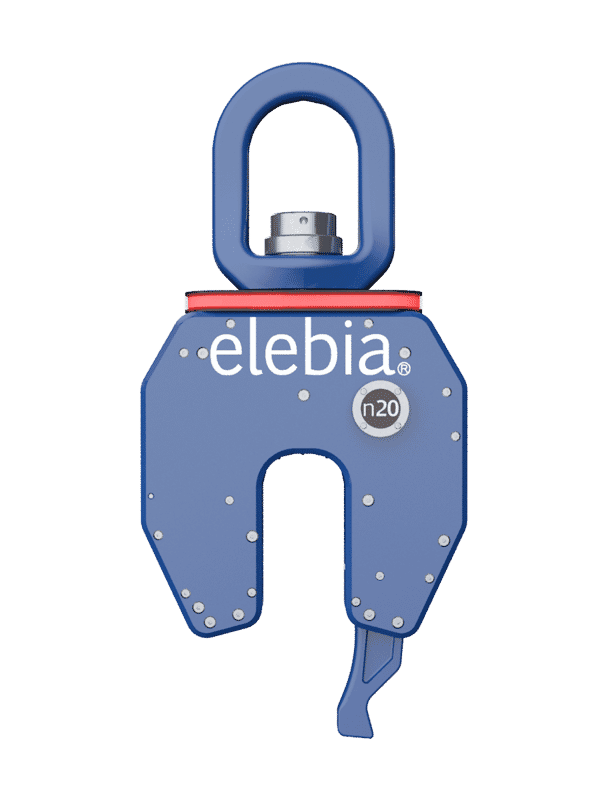

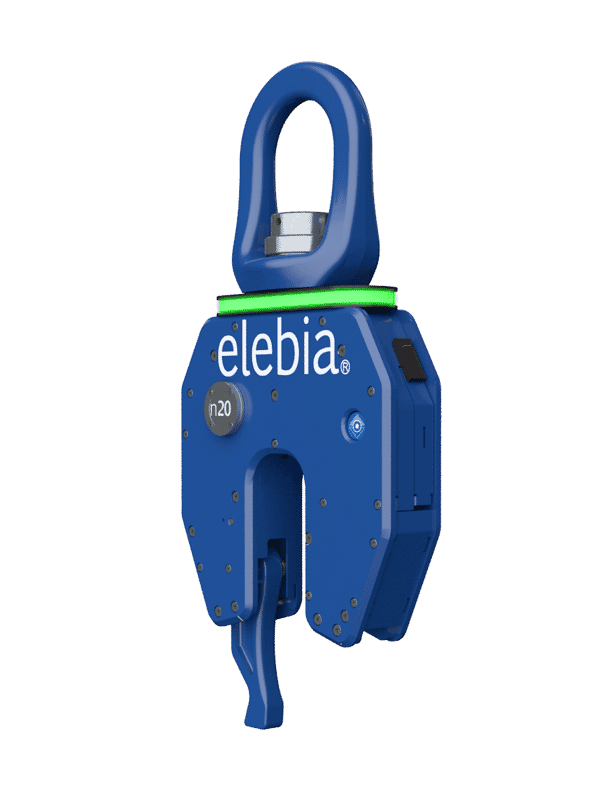

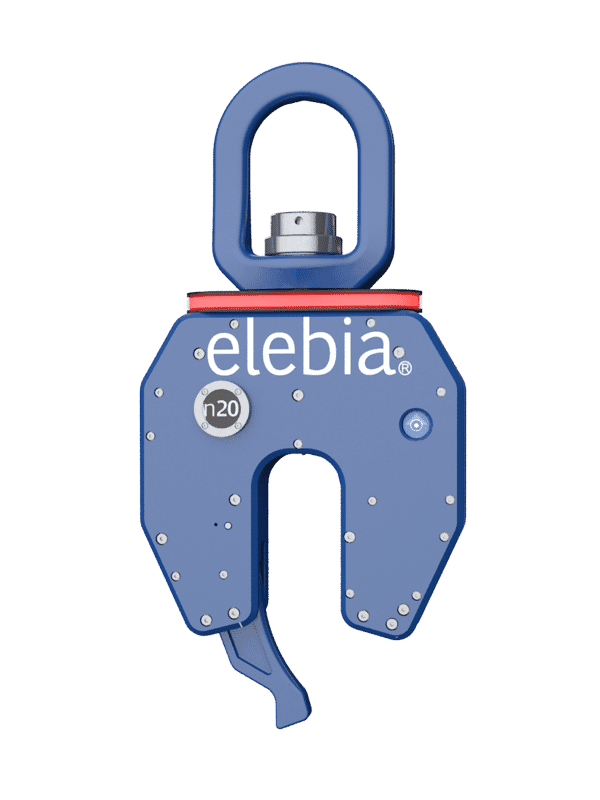

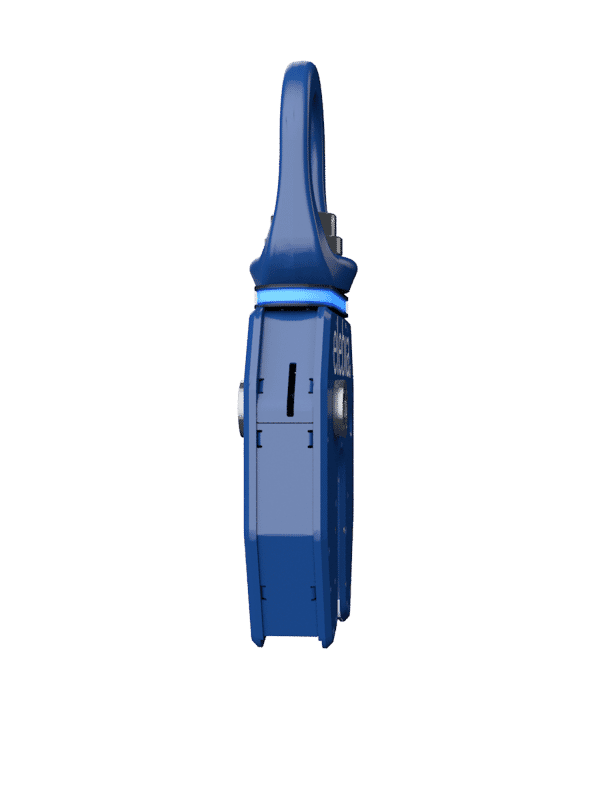

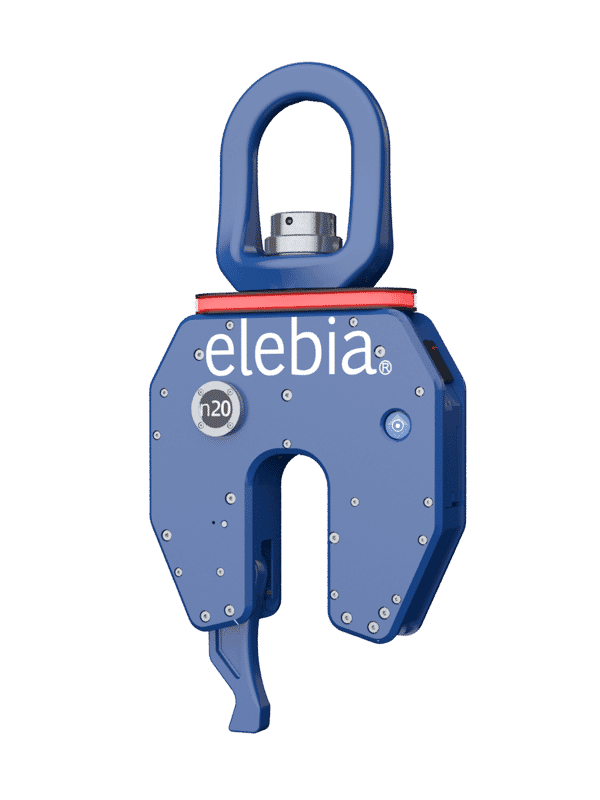

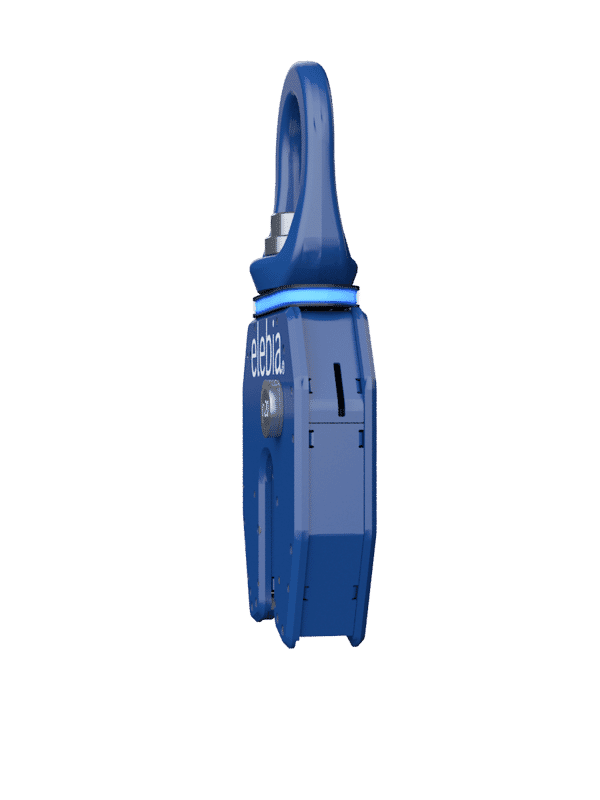

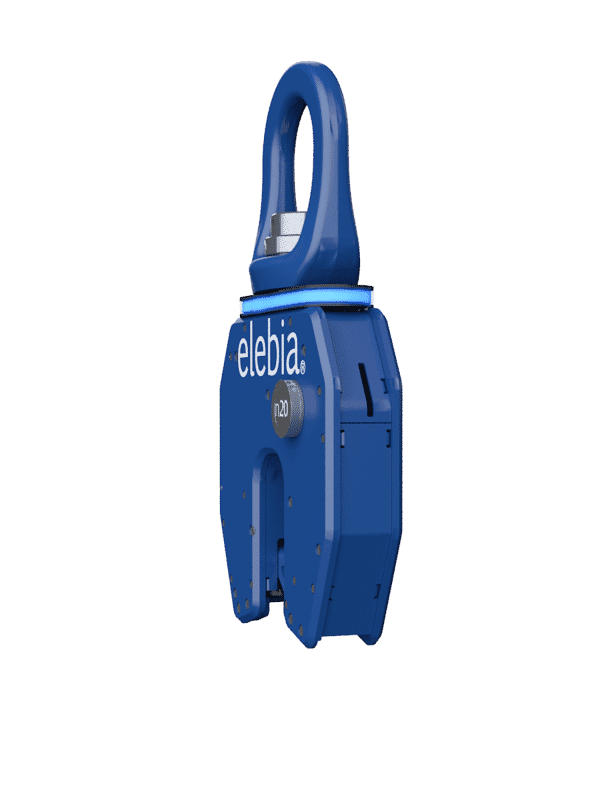

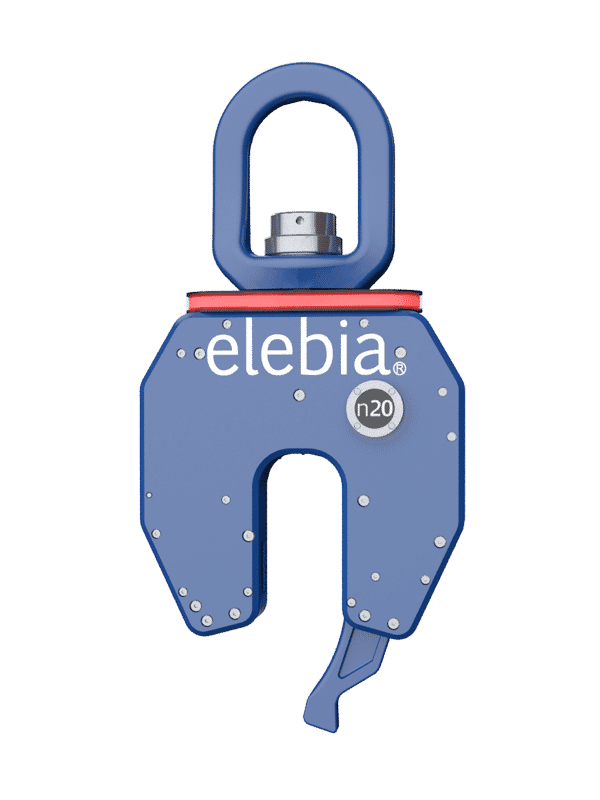

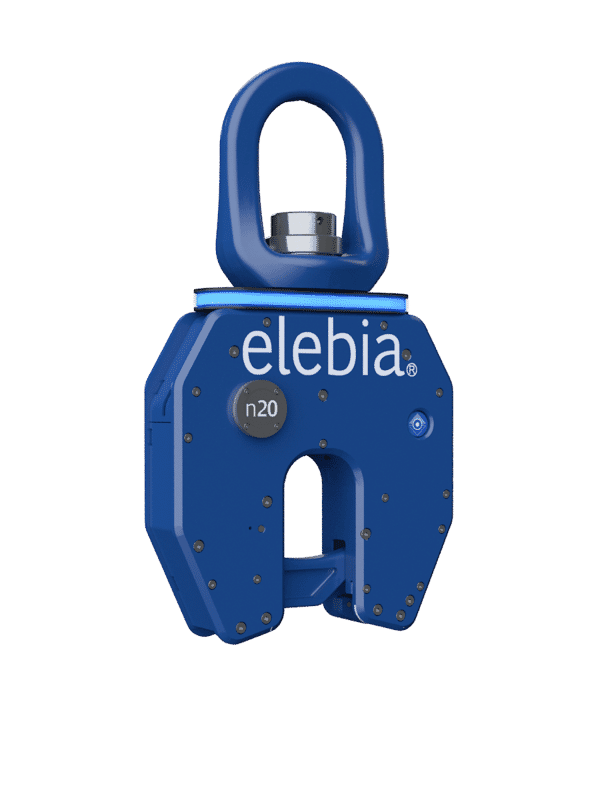

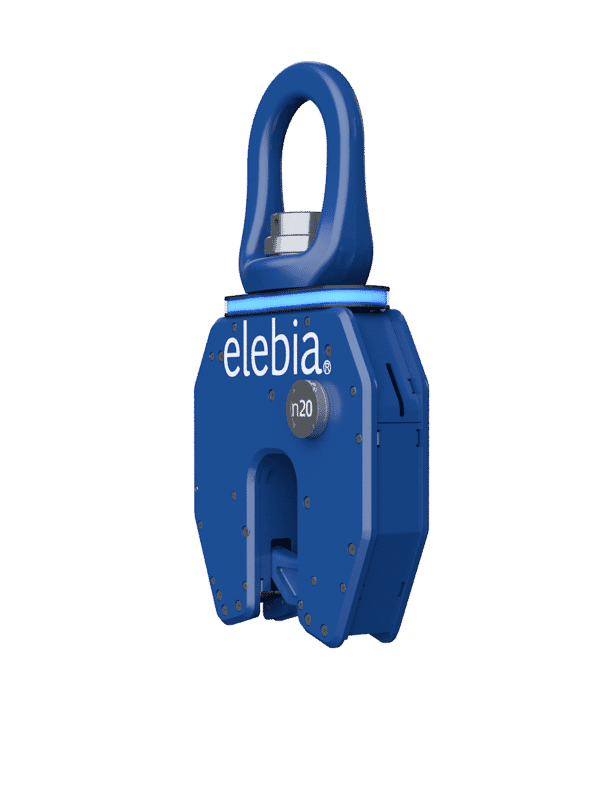

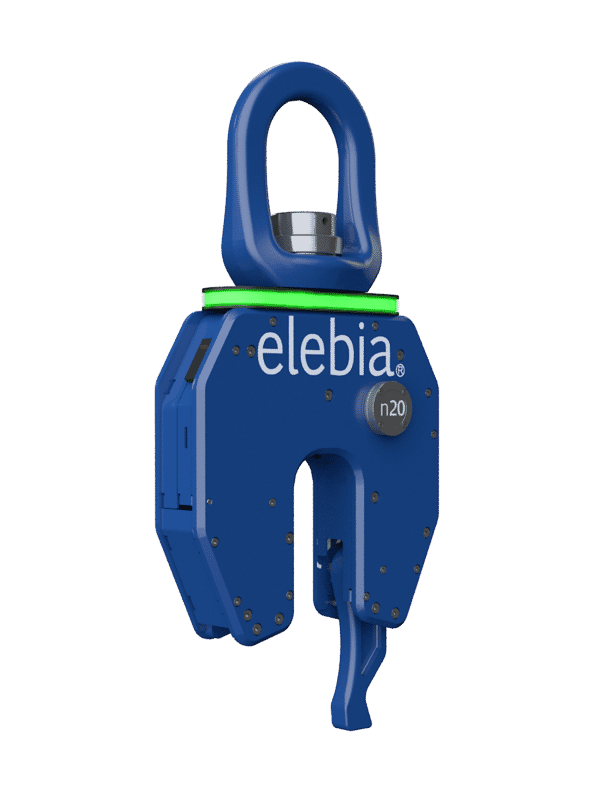

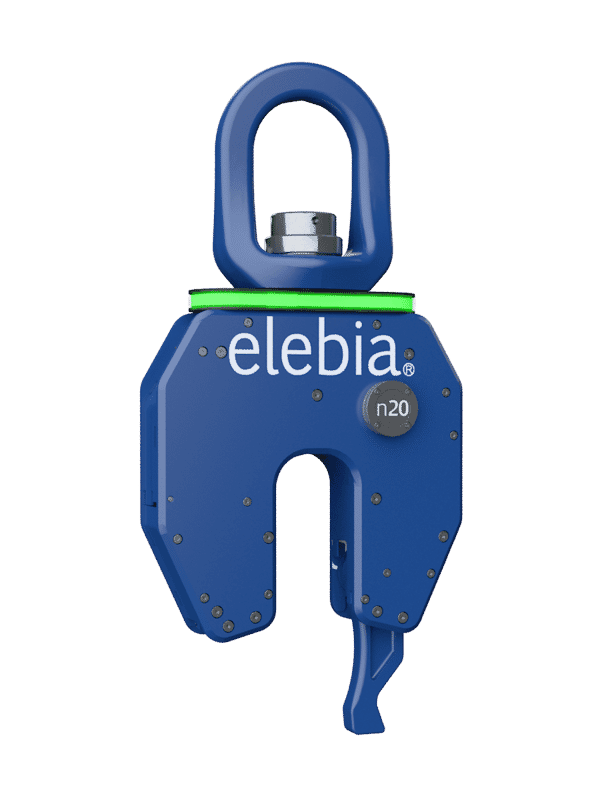

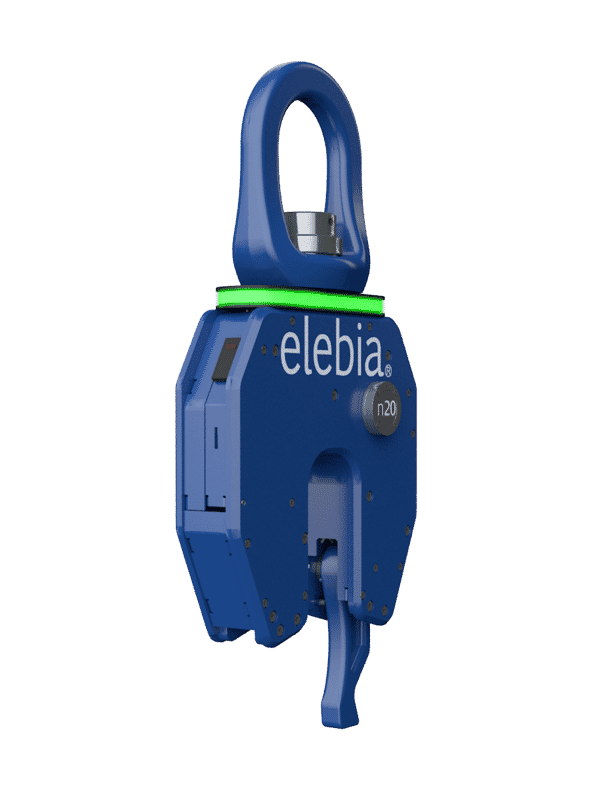

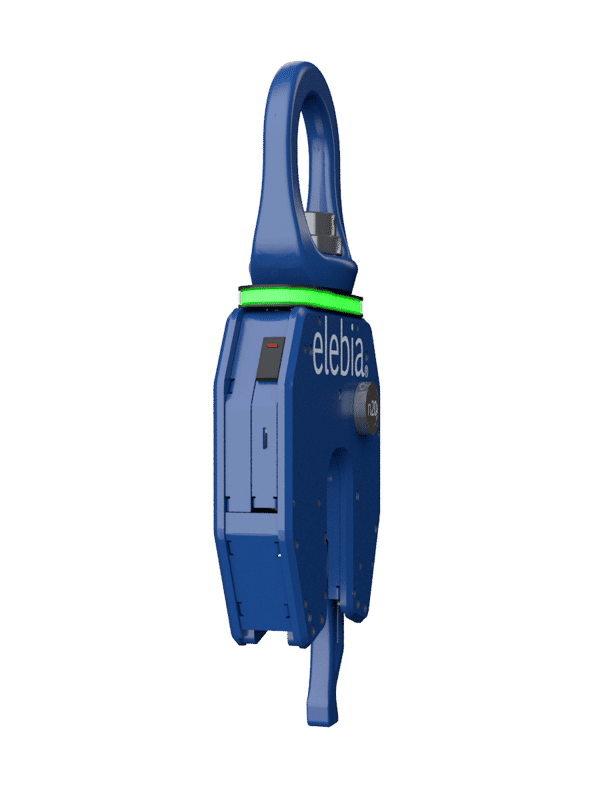

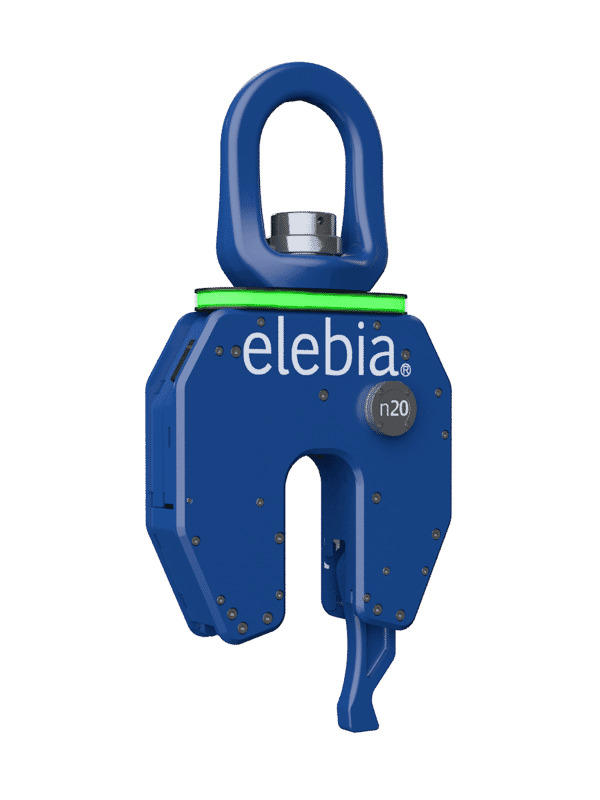

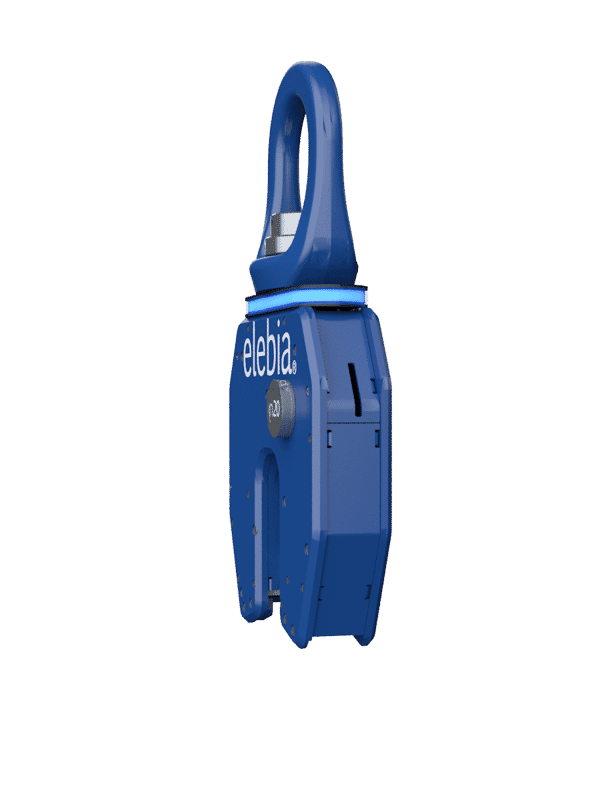

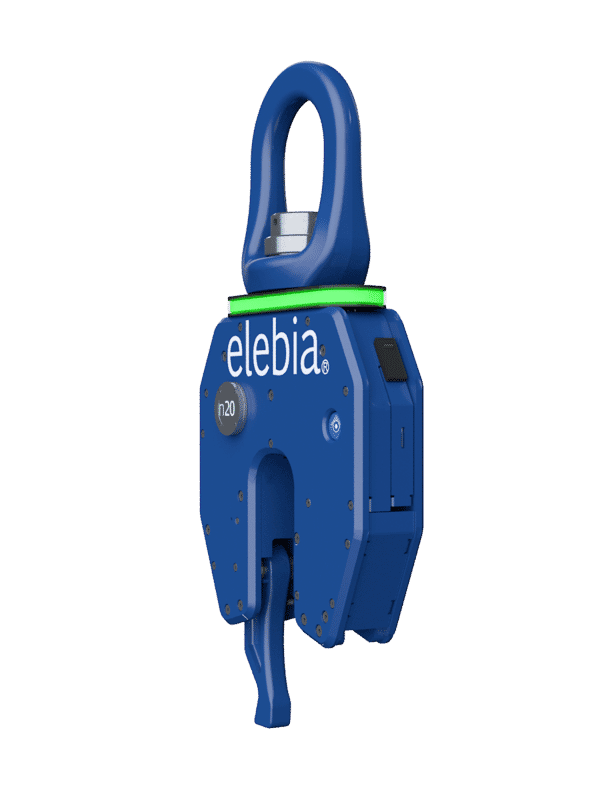

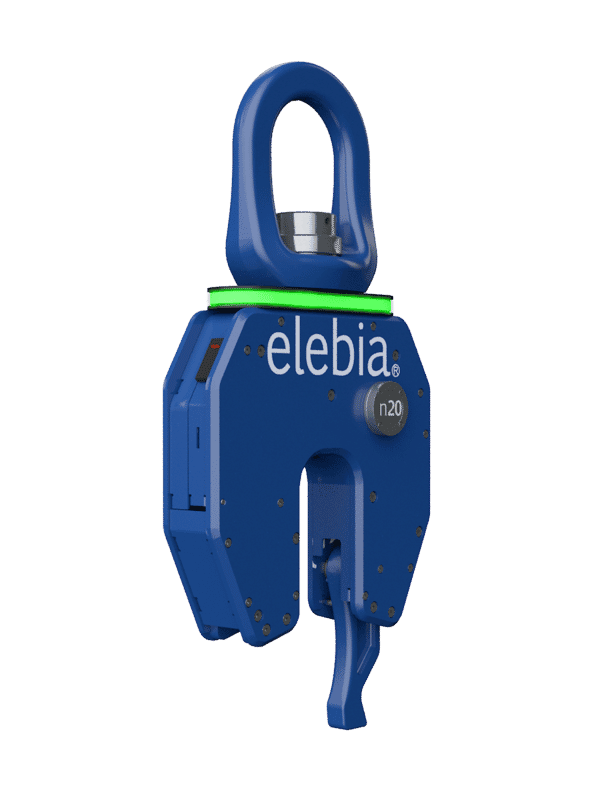

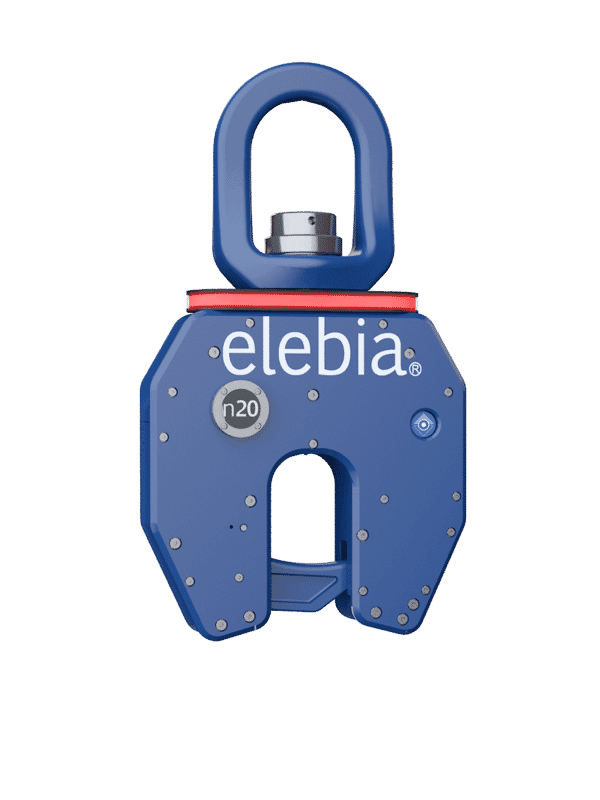

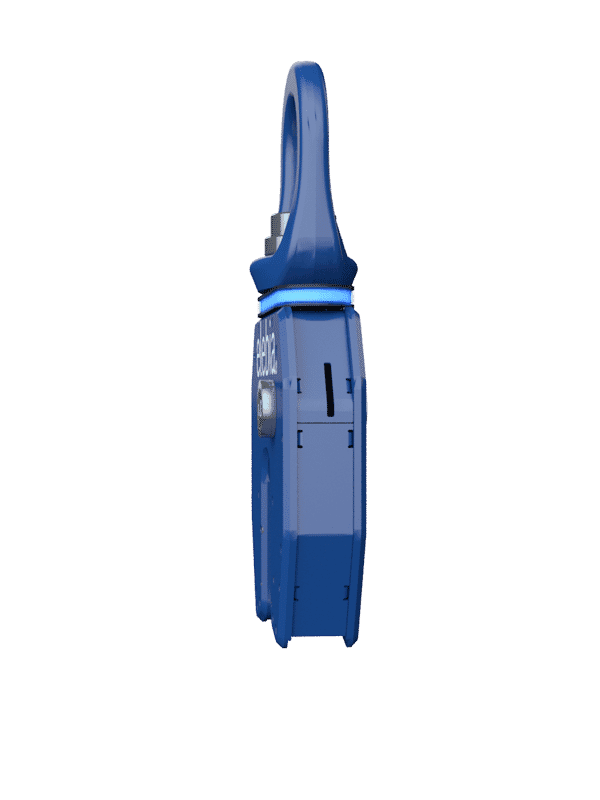

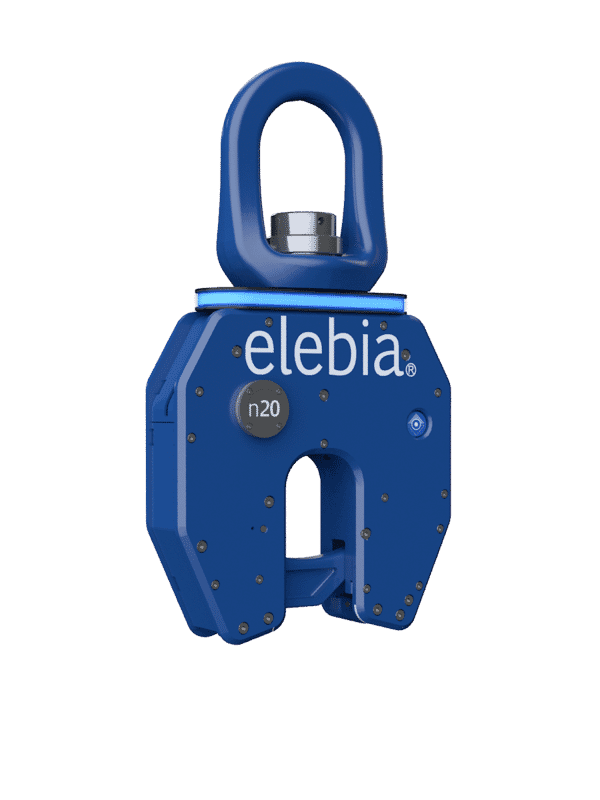

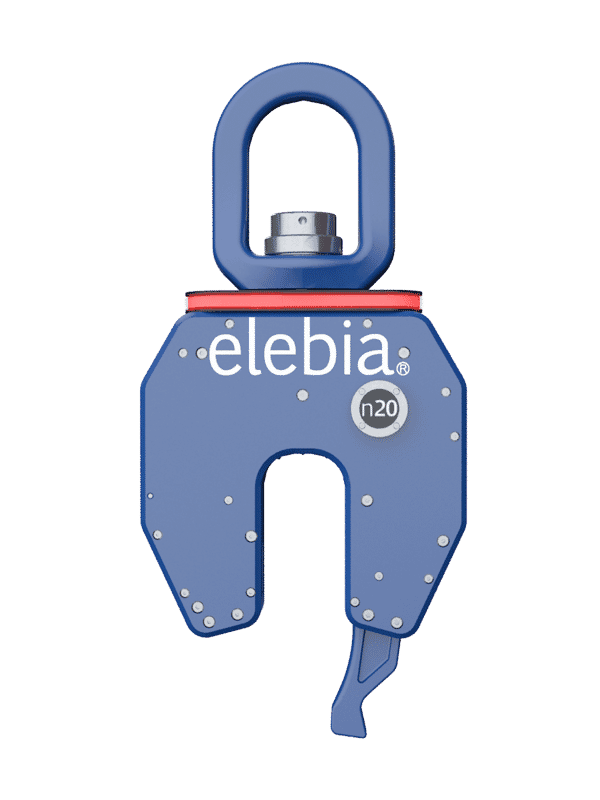

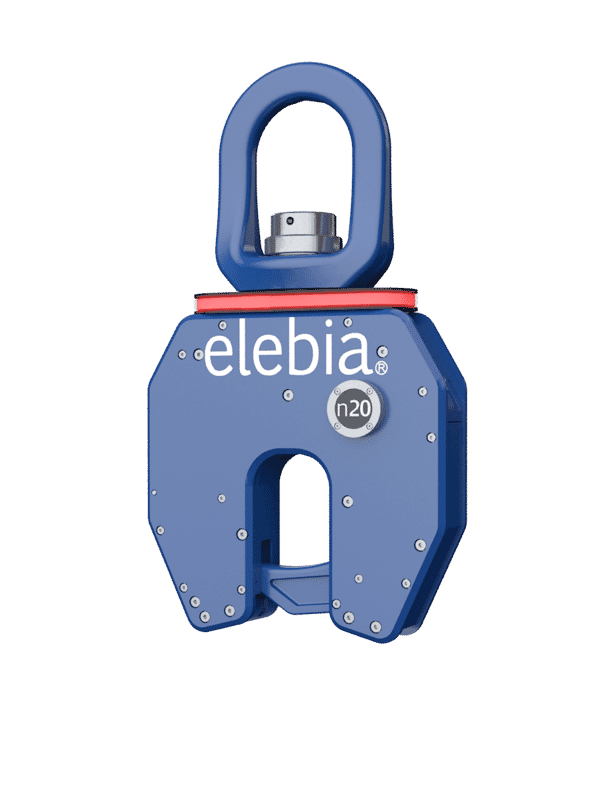

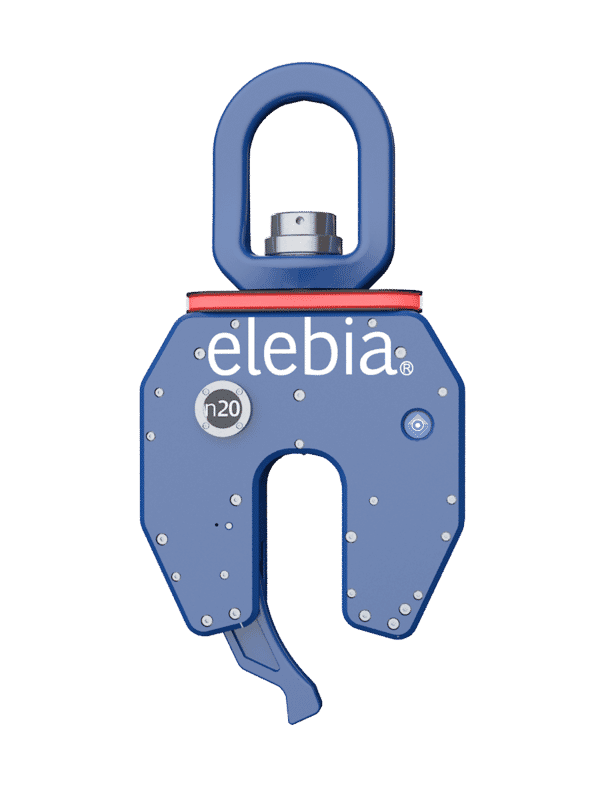

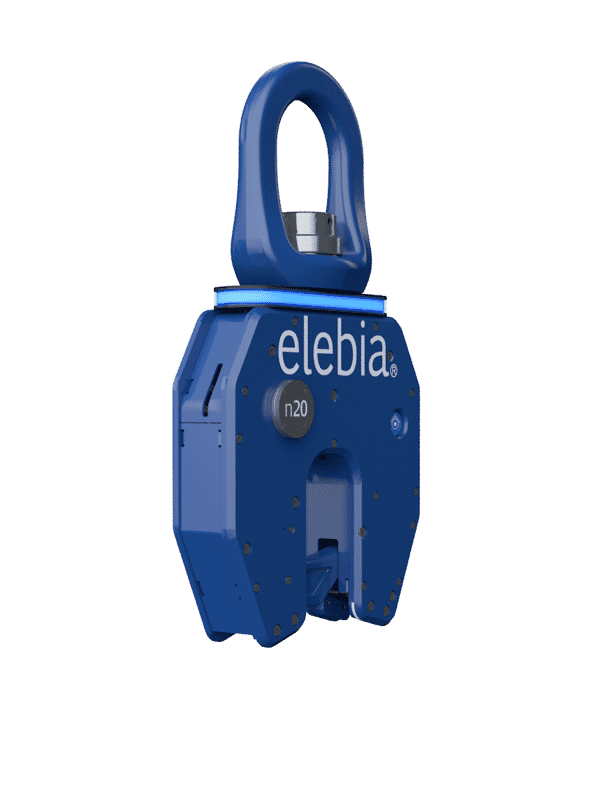

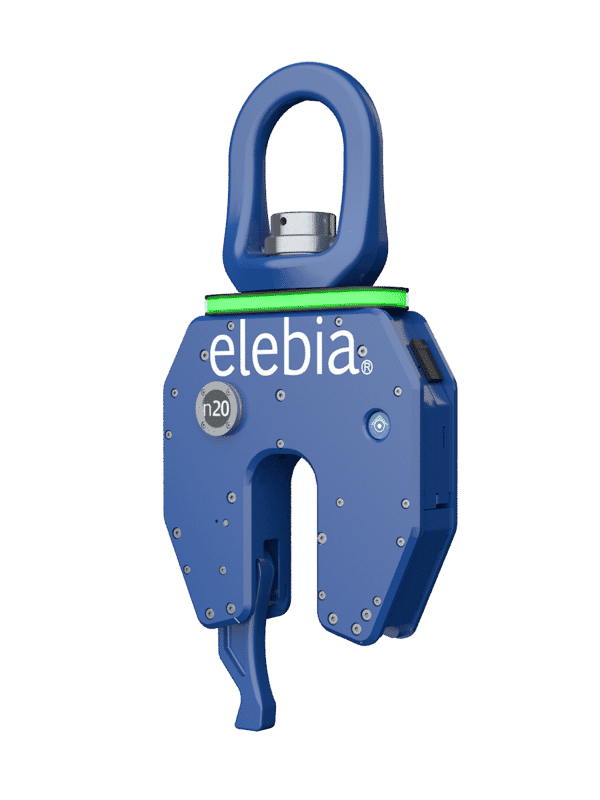

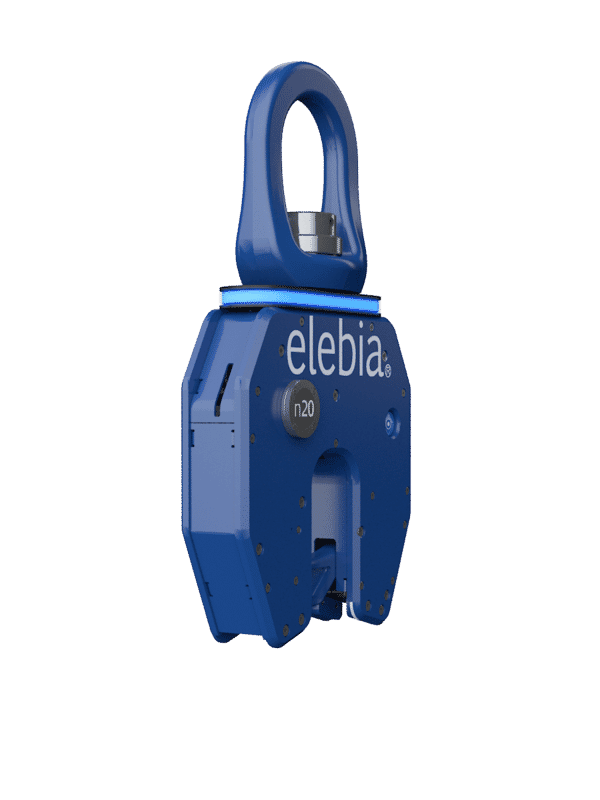

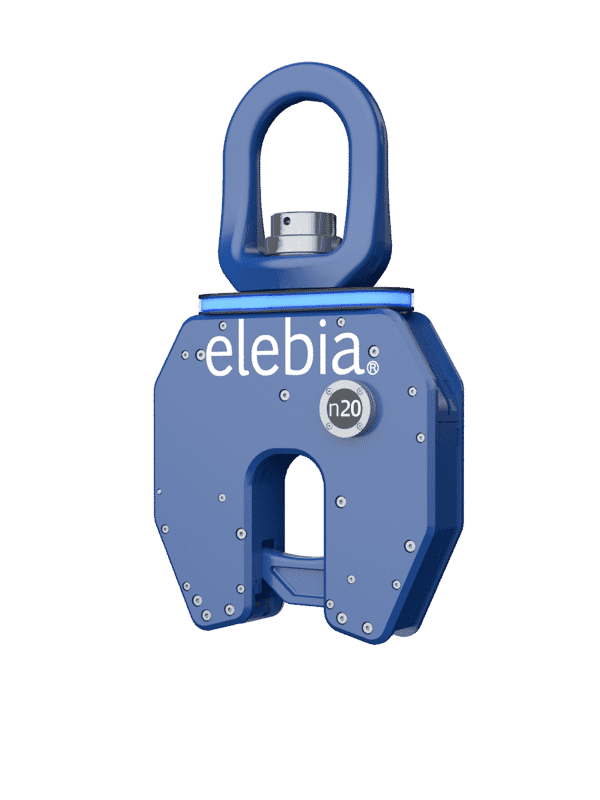

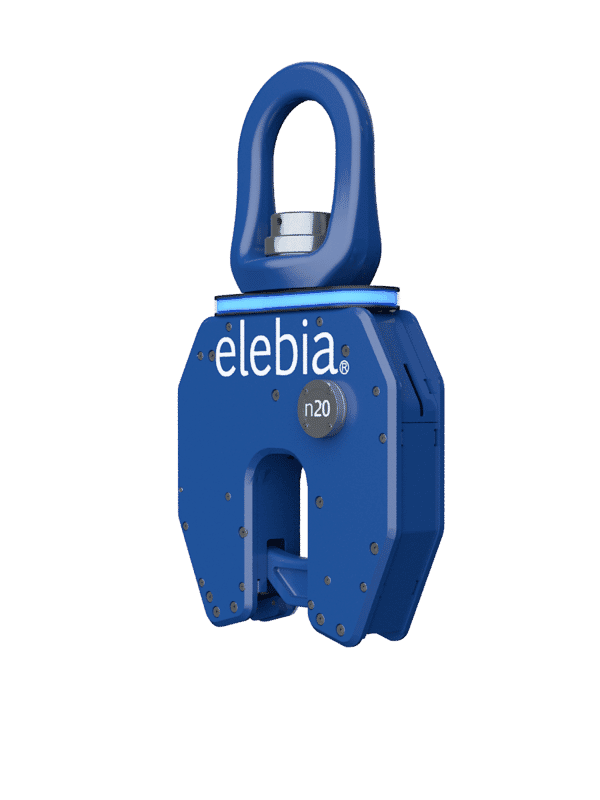

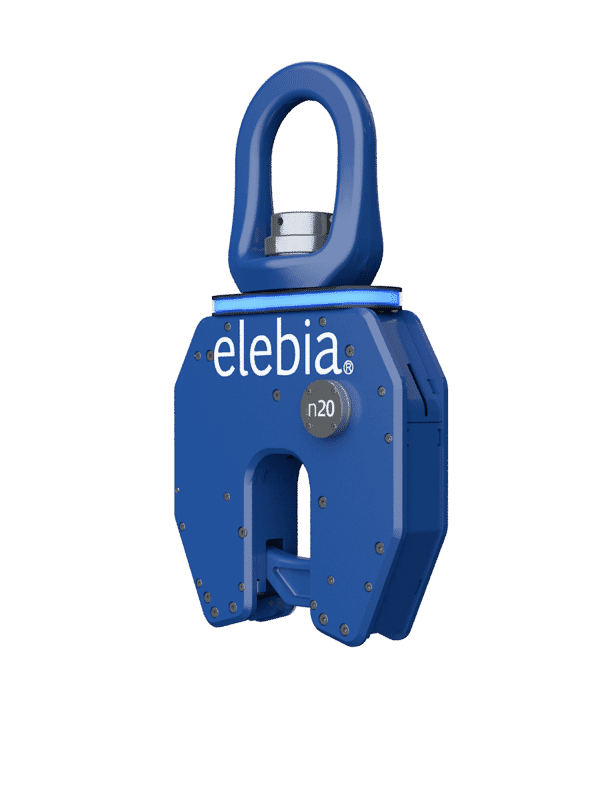

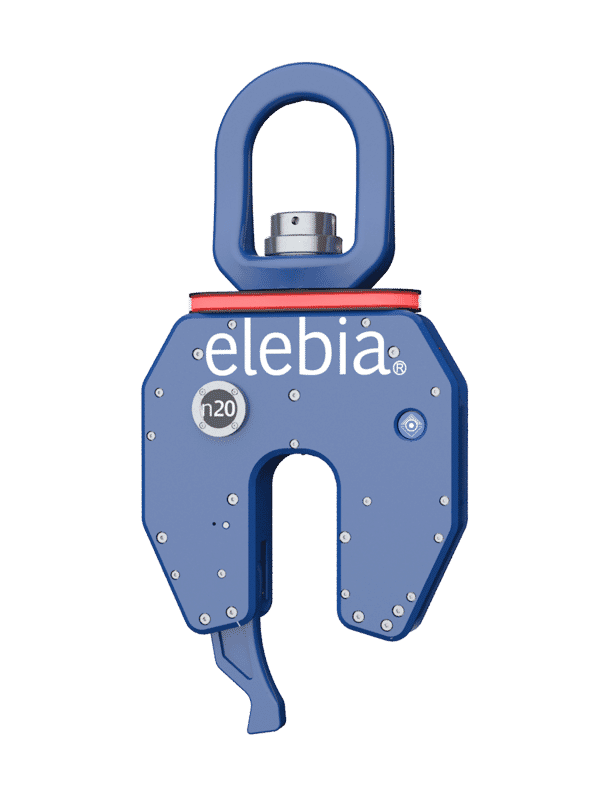

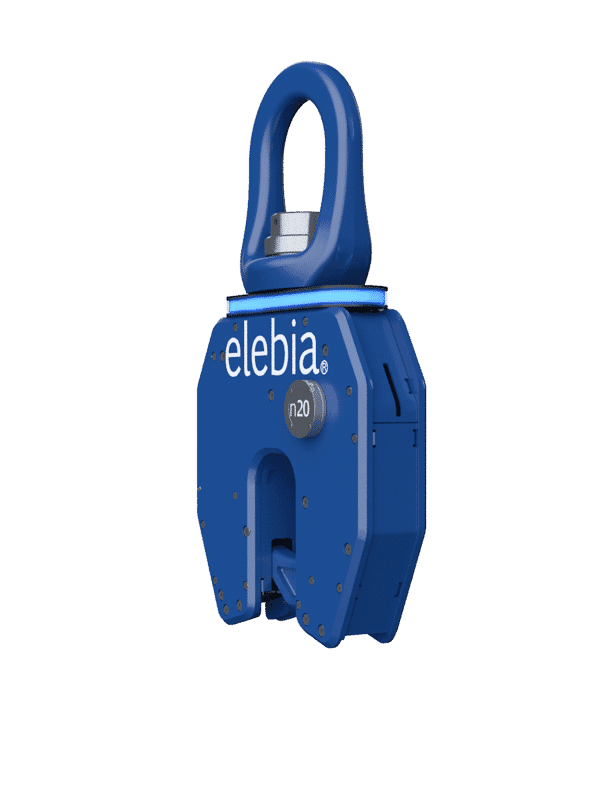

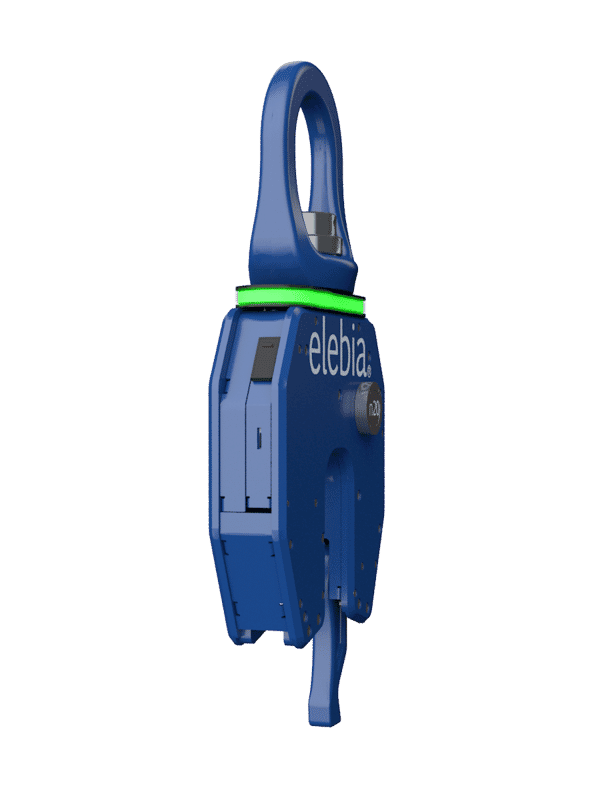

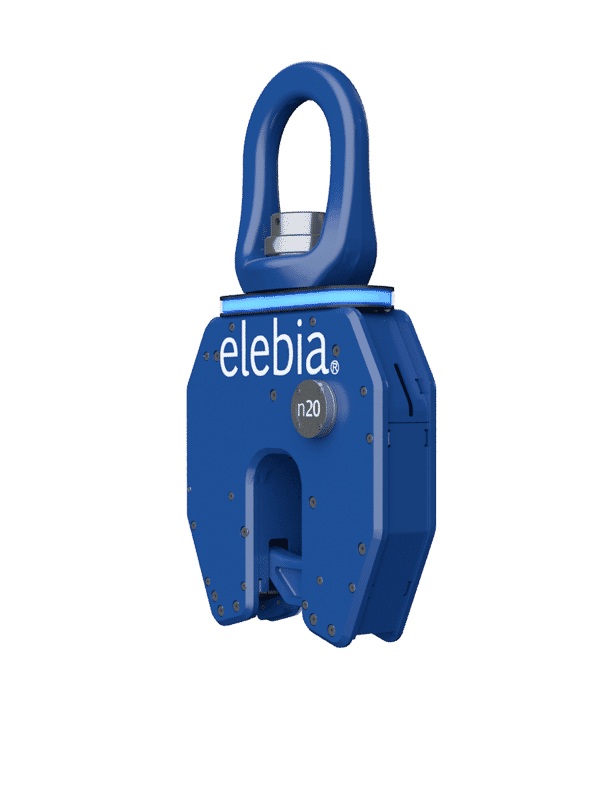

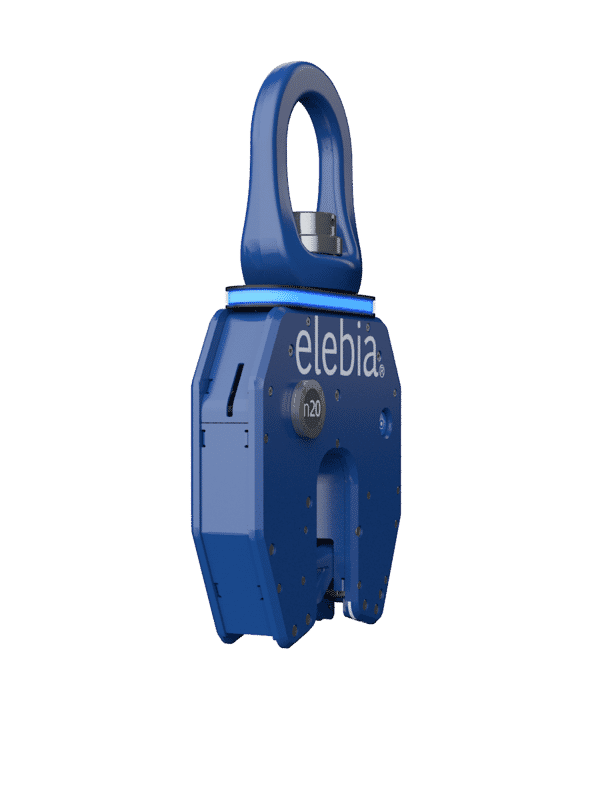

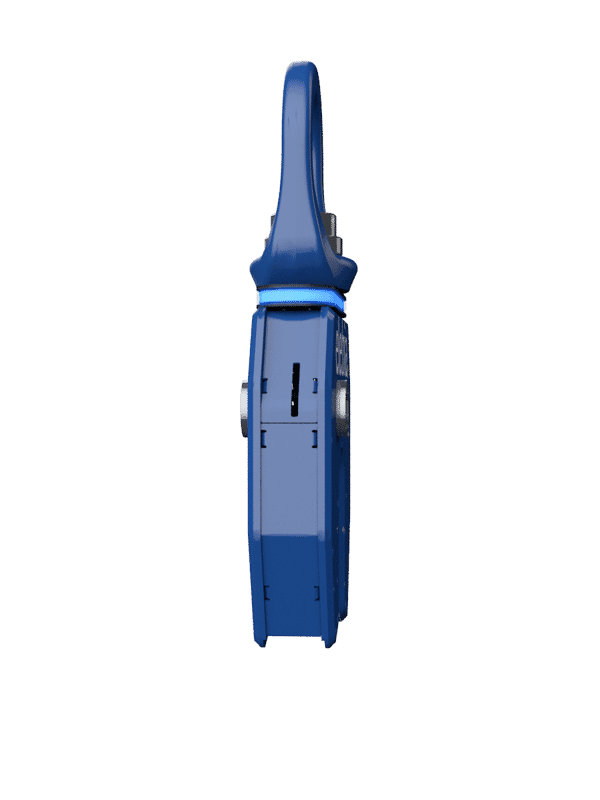

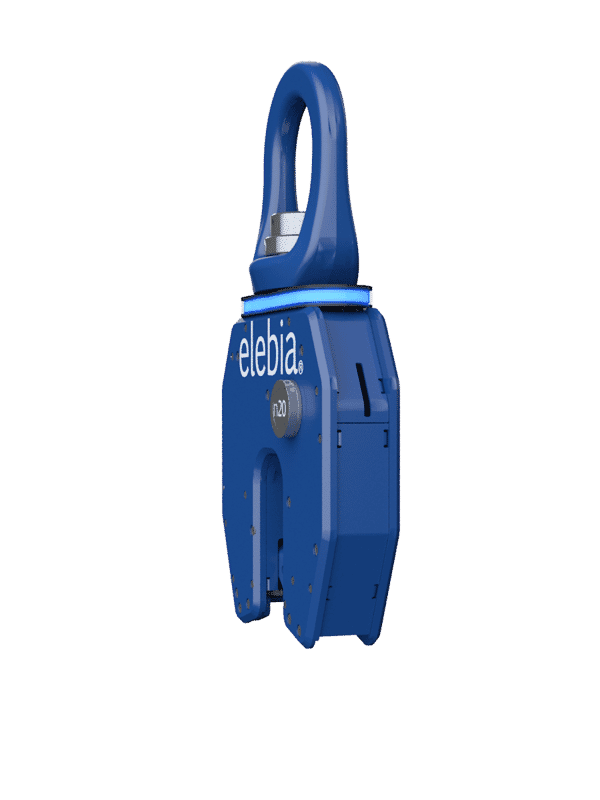

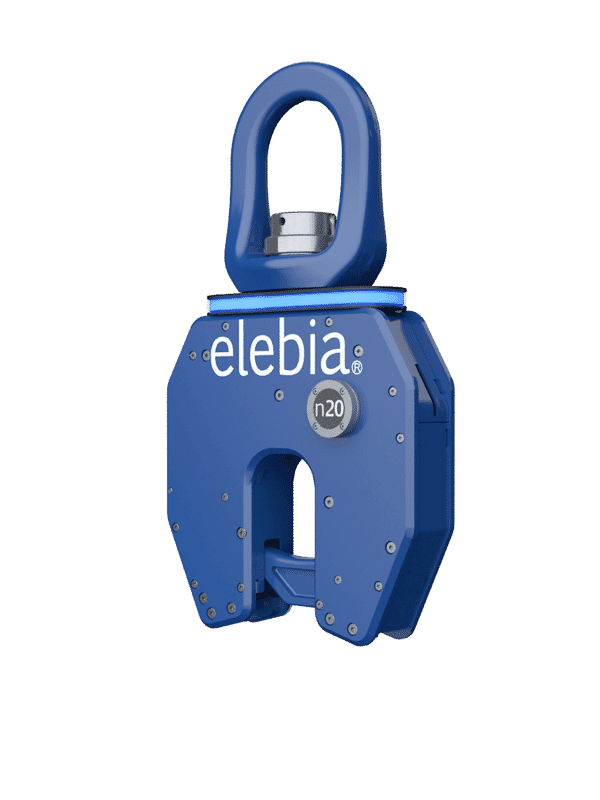

NEO20, The Hook for Bell Furnaces

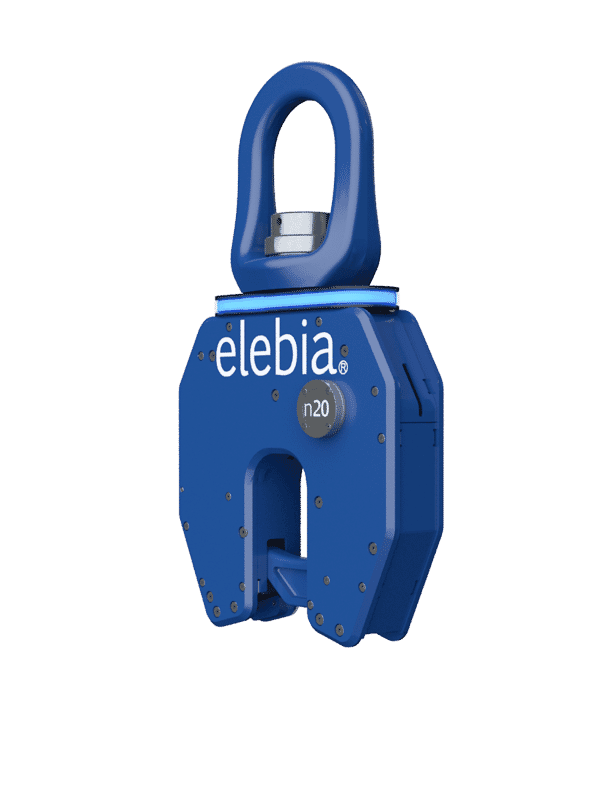

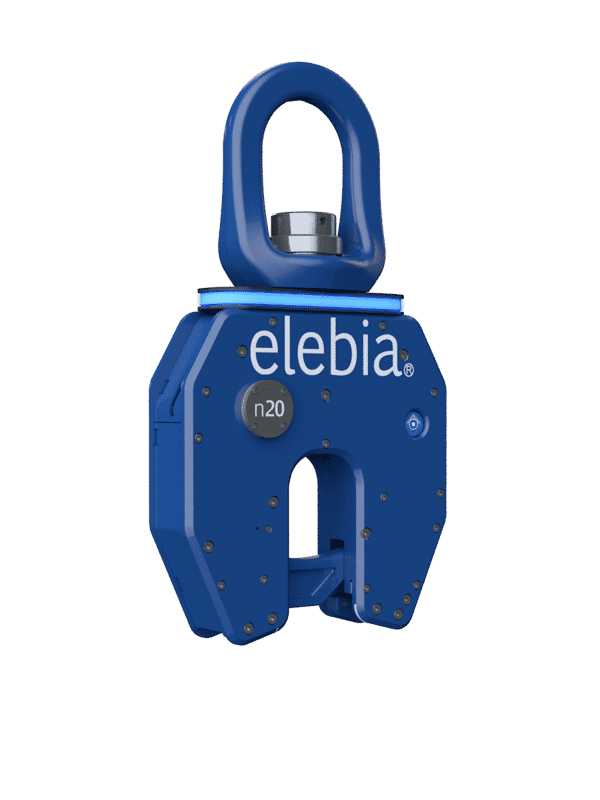

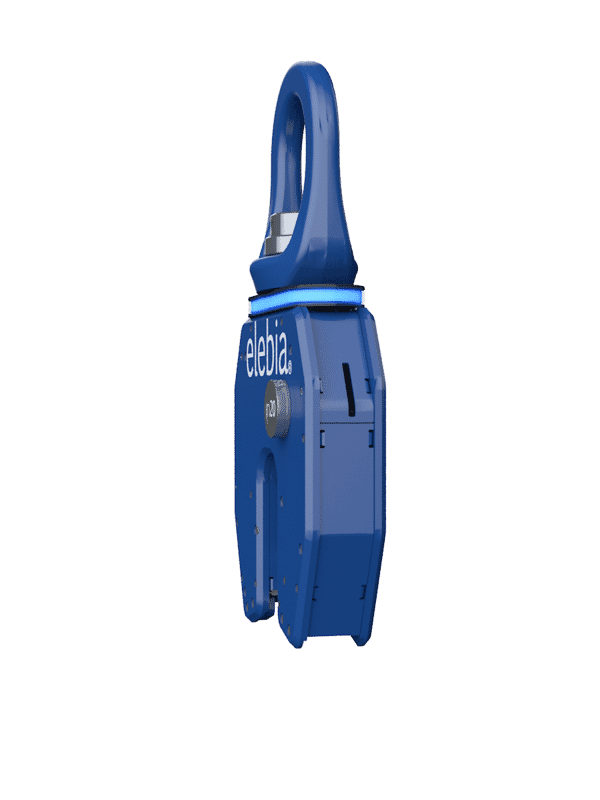

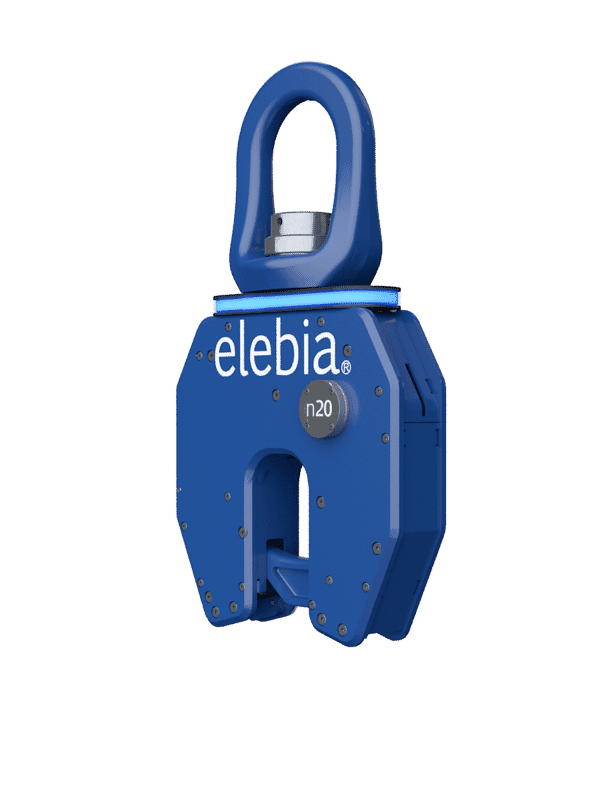

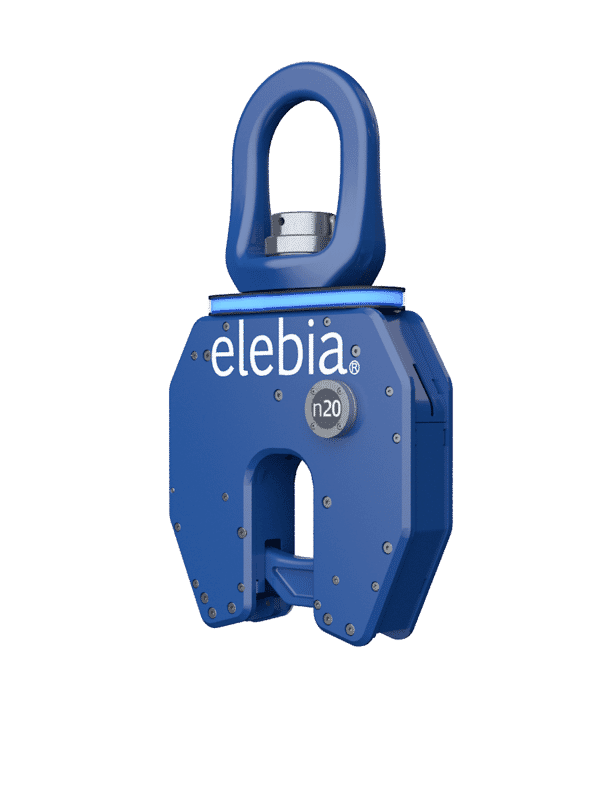

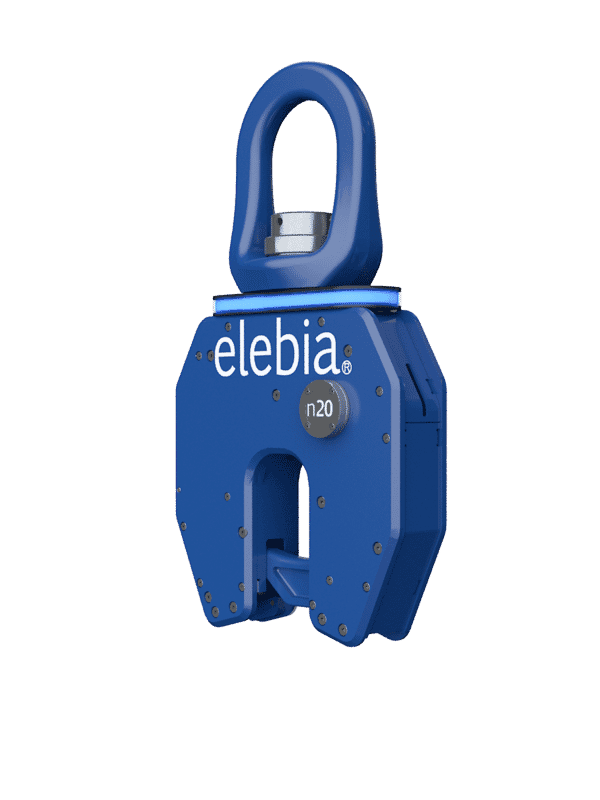

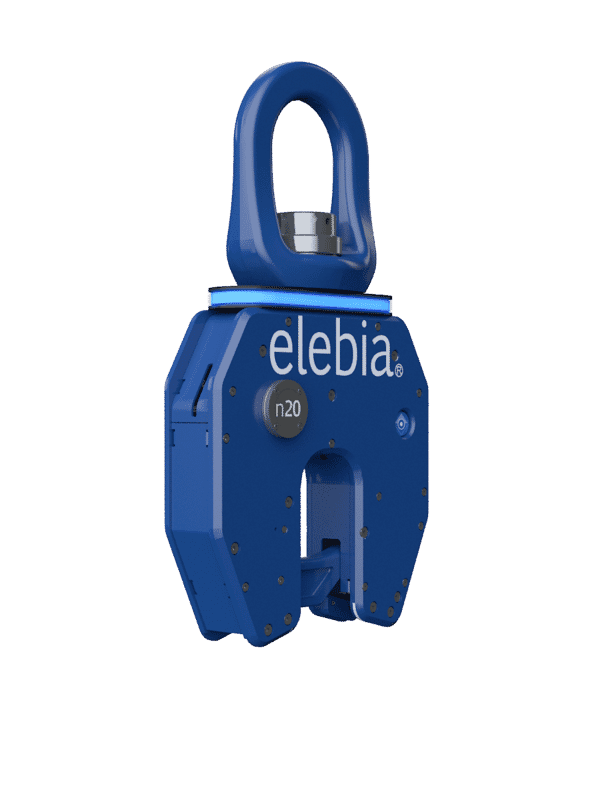

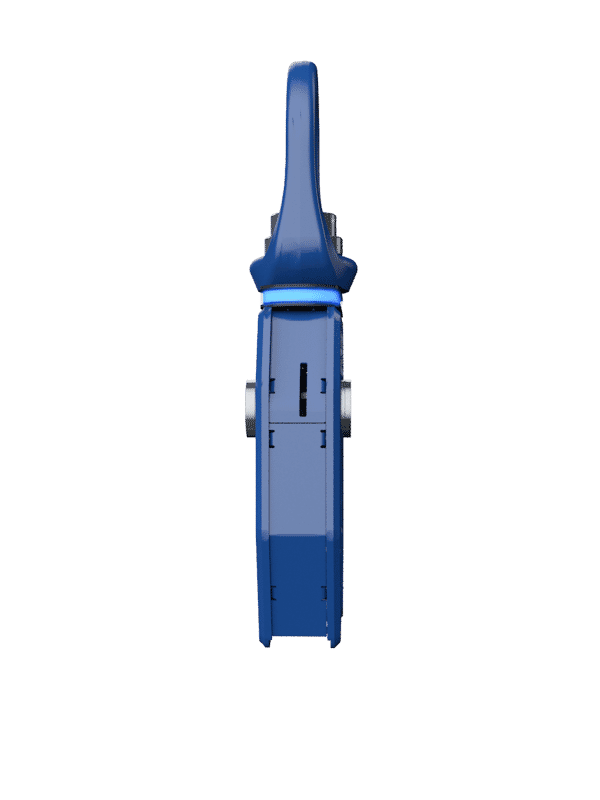

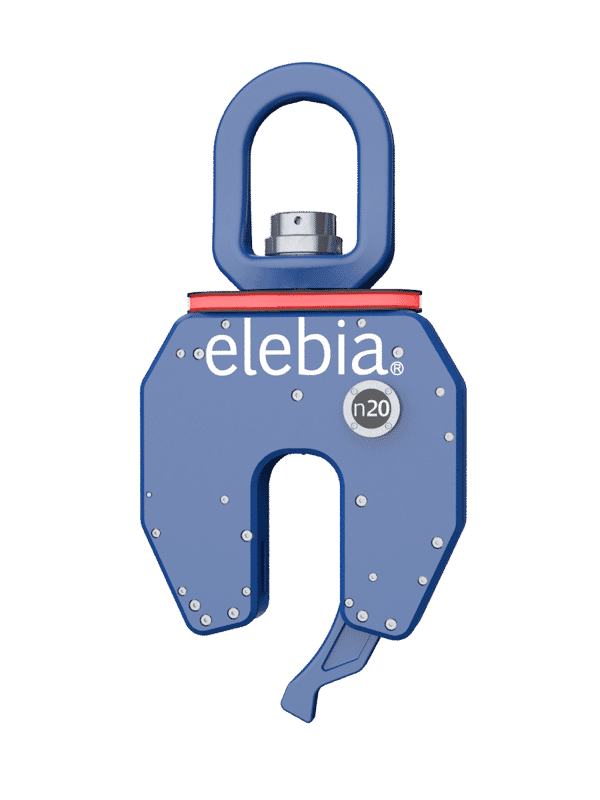

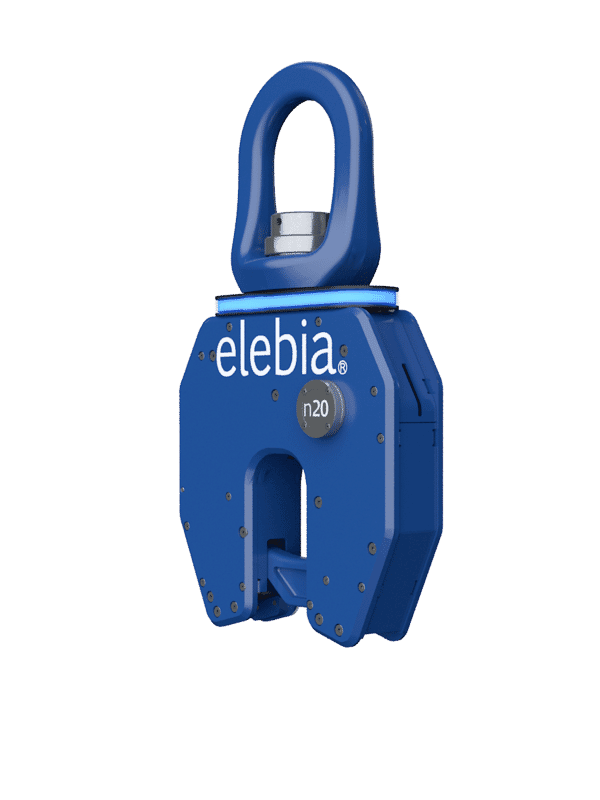

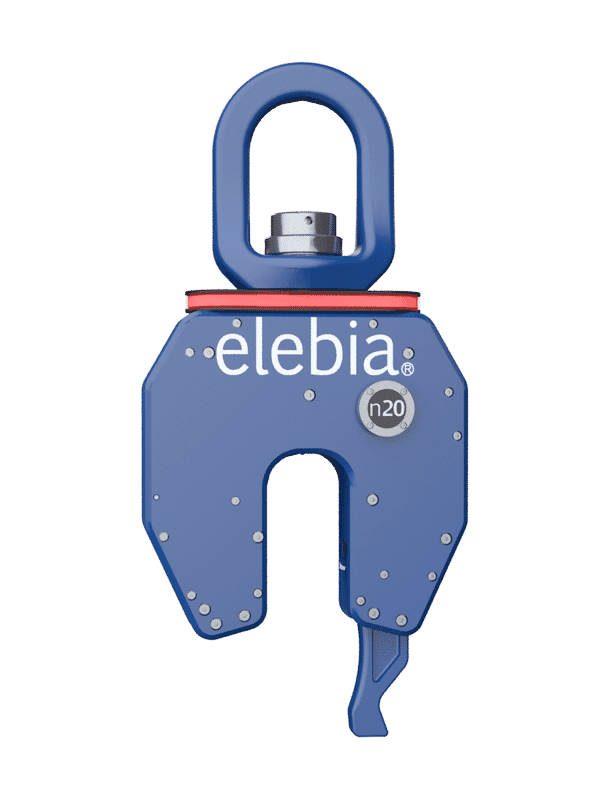

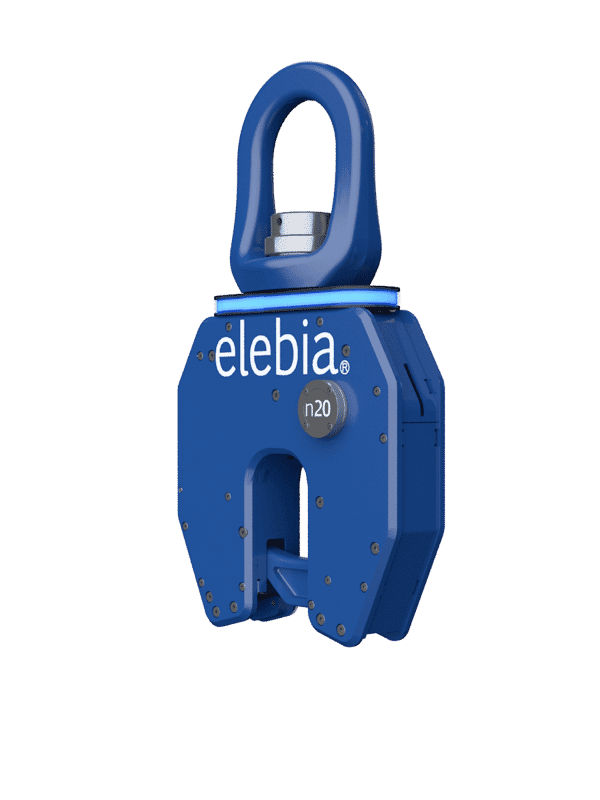

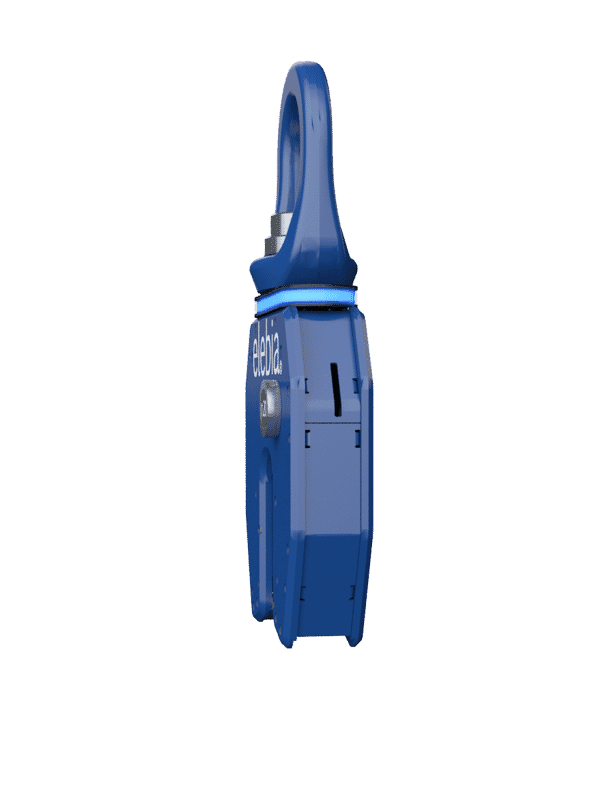

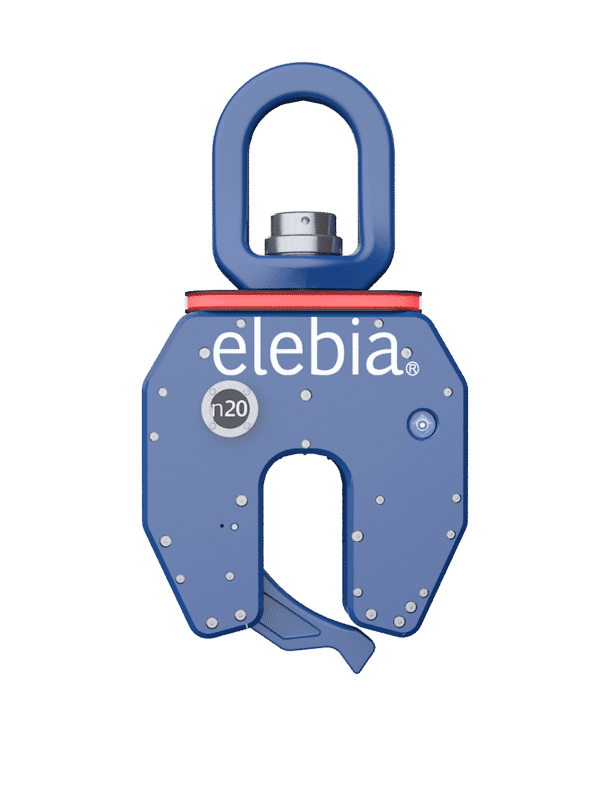

The NEO20 lifting hook for bell furnaces, with its 20,000 kg/44,092 lb lifting capacity, has been designed as a solution for lifting and transporting bell furnaces, as well as for oversized lifting points (up to 100mm Ø) such as rods between plates, holes on a plate, chain slings, lifting bails and other oversized lifting points.
NEO20 – Hook for Bell Furnaces

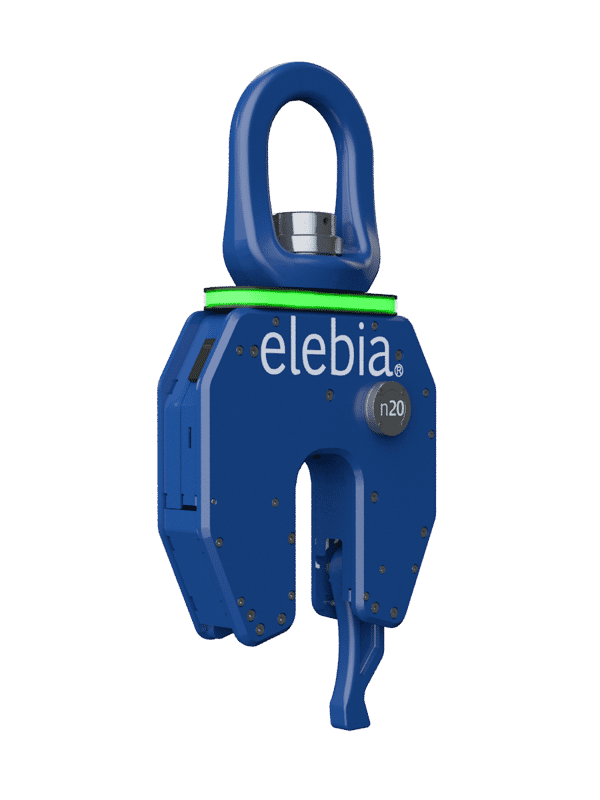

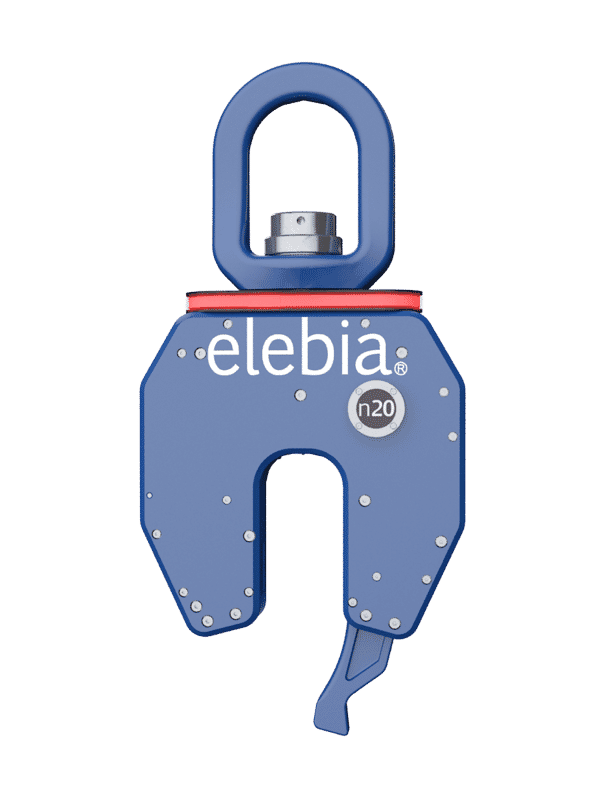

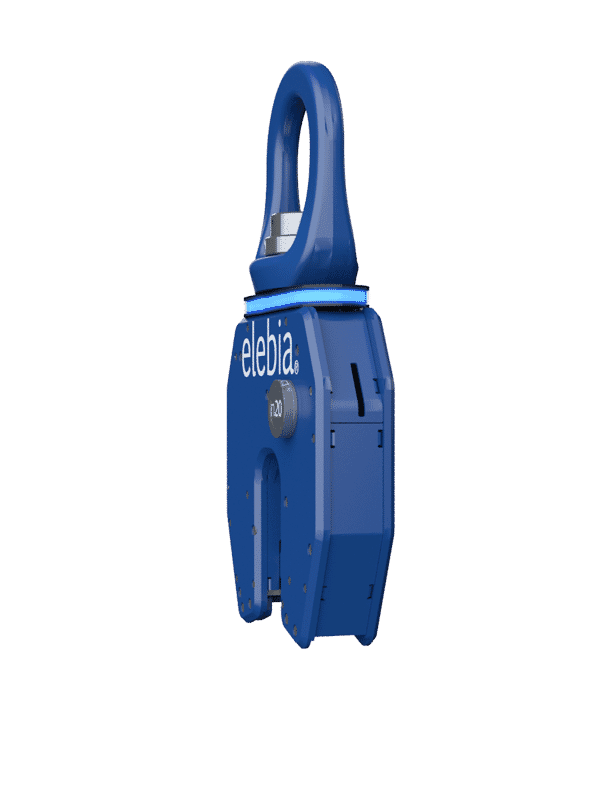

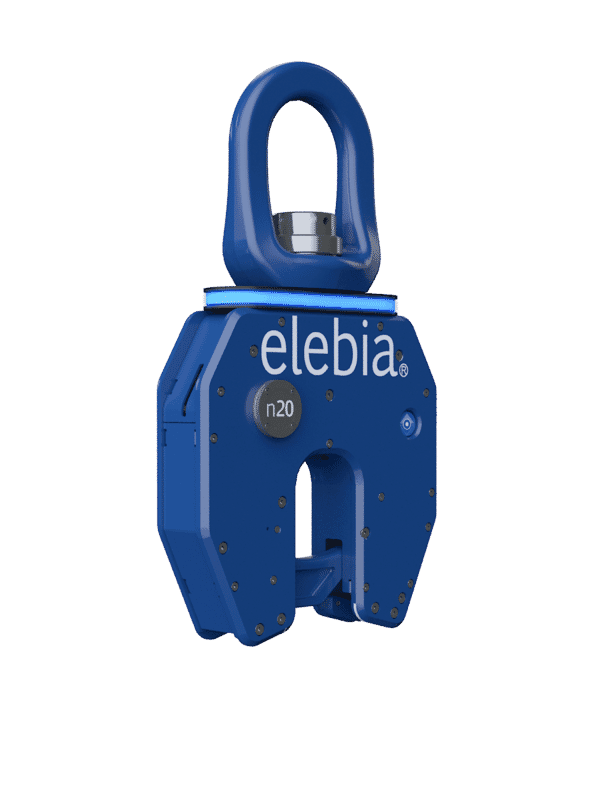

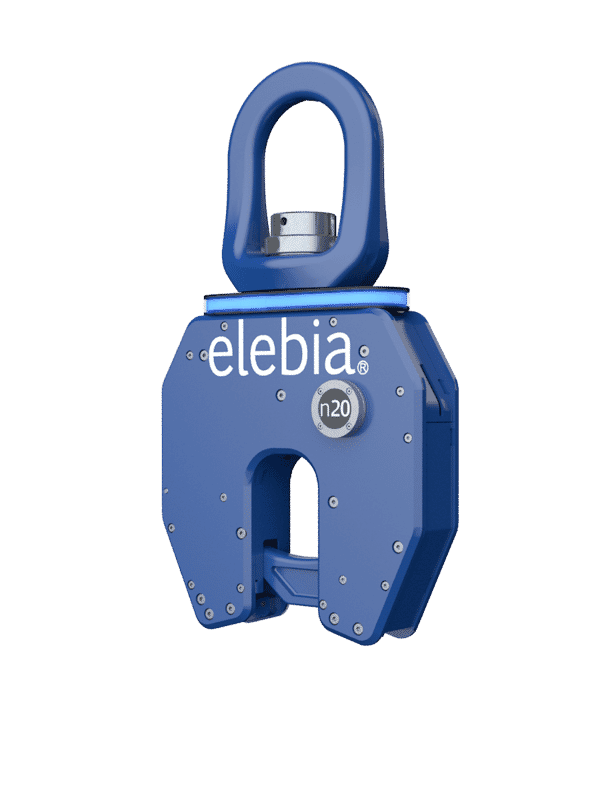

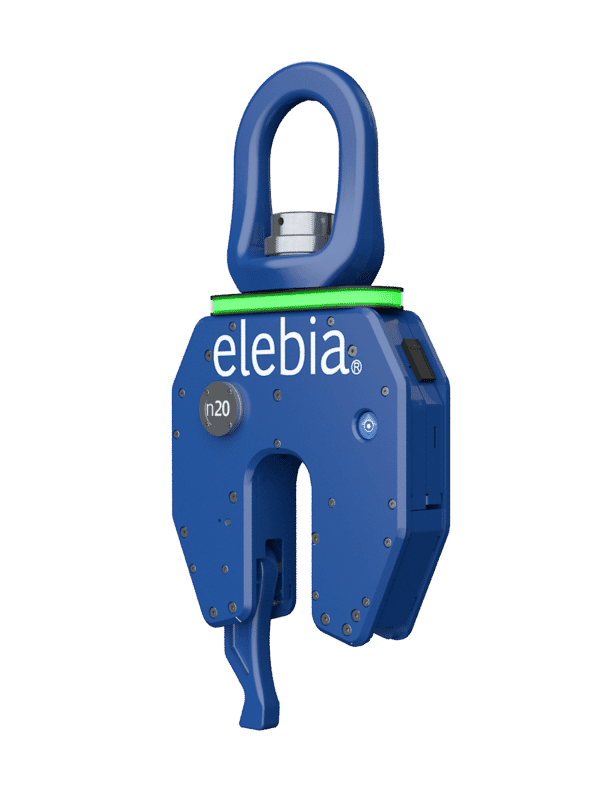

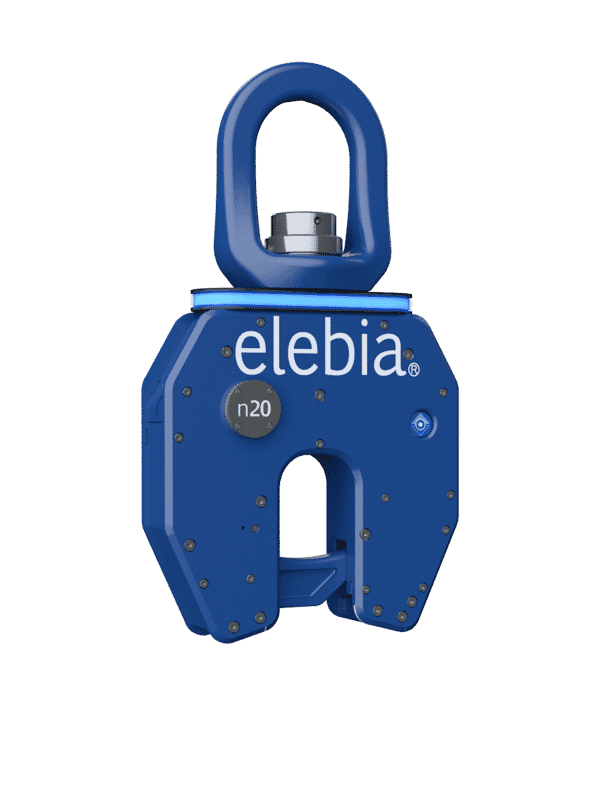

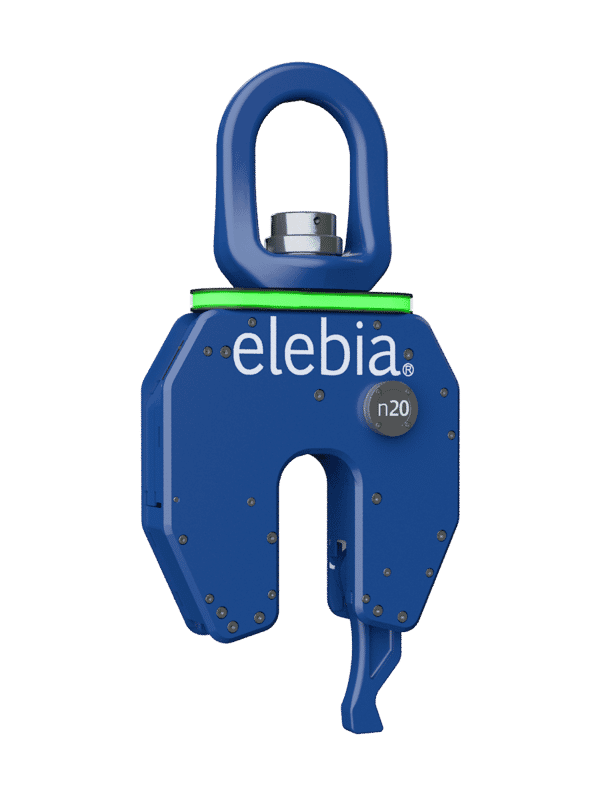

THE perfect solution for lifting & handling bell furnaces
Ideal for oversized lifting points (up to 100mm Ø)
Remote engage and release of load
Fail-safe Design: Impossible to drop a suspended load
“All or Nothing” principle: Additional safety feature where
NEO lifts load ONLY when closure system is confirmed locked
Check out all of our NEO Hook Lifting
Check it out!
NEO20 Customers
Bell Furnaces Hook
The lifting hooks for bell furnaces has been designed as a
solution for lifting and transporting bell furnaces, as well as for
oversized lifting points (up to 100mm Ø) such as rods between plates,
holes on a plate, chain slings, lifting bails and other oversized lifting points.
In Detail
The Maximum Releasable Weight is 20 to 34 kgs./40 to 75 lbs.*
* For higher values, please contact the sales department.
Swivel with Bearings
The bearings allow the Hook for Bell Furnaces to rotate freely.
If required, the swivel can be set in a fixed position.
Check out all of our NEO Lifting Hooks

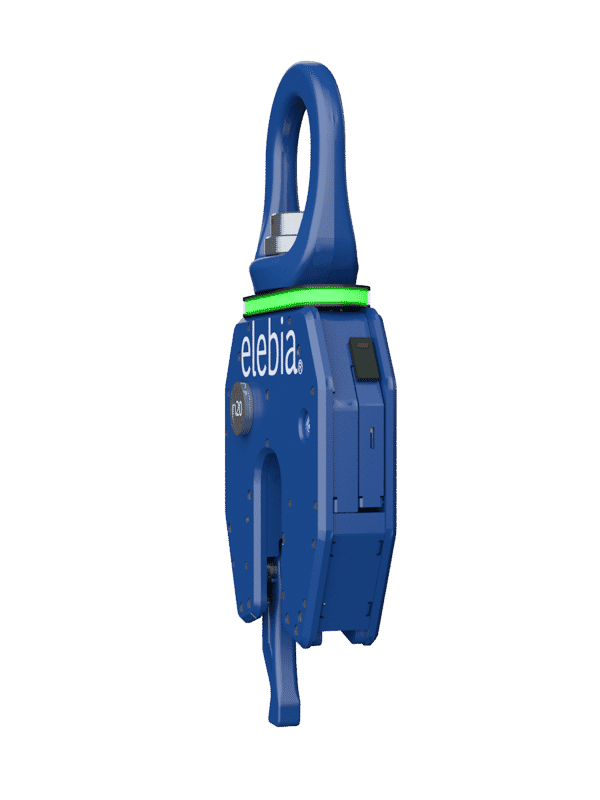

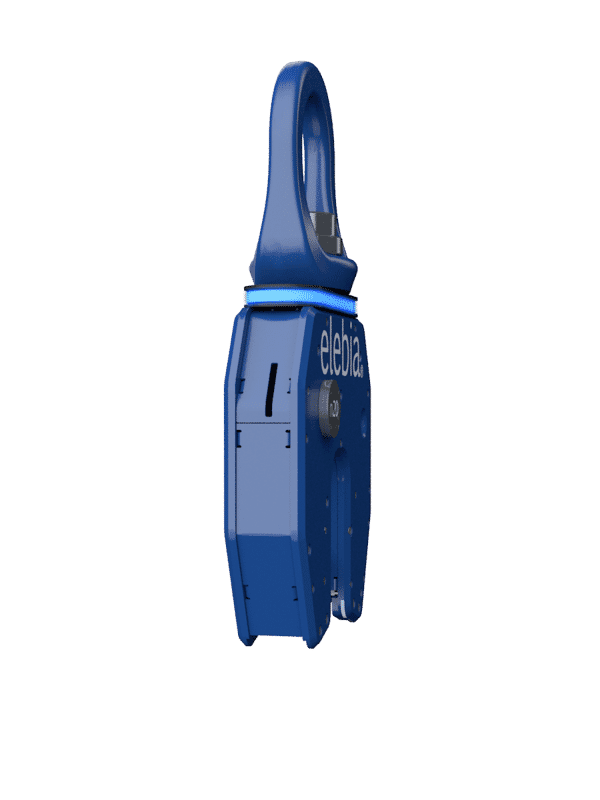

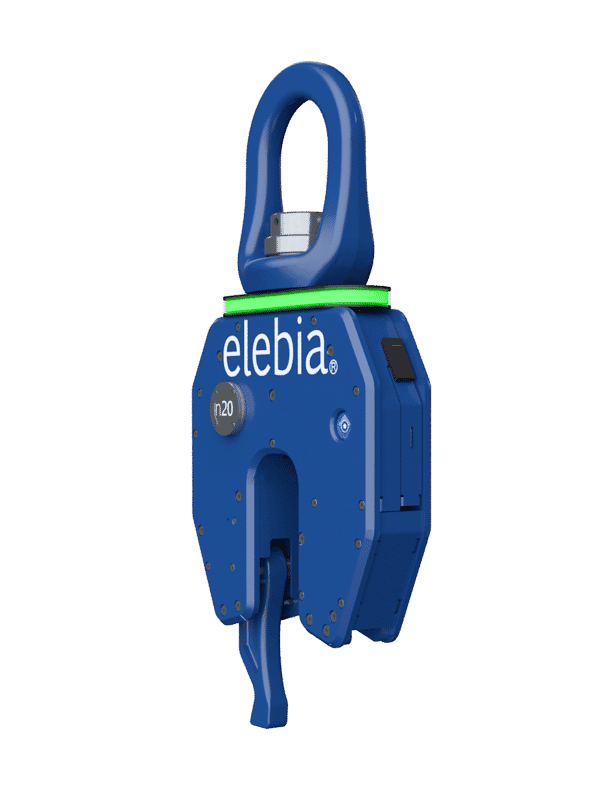

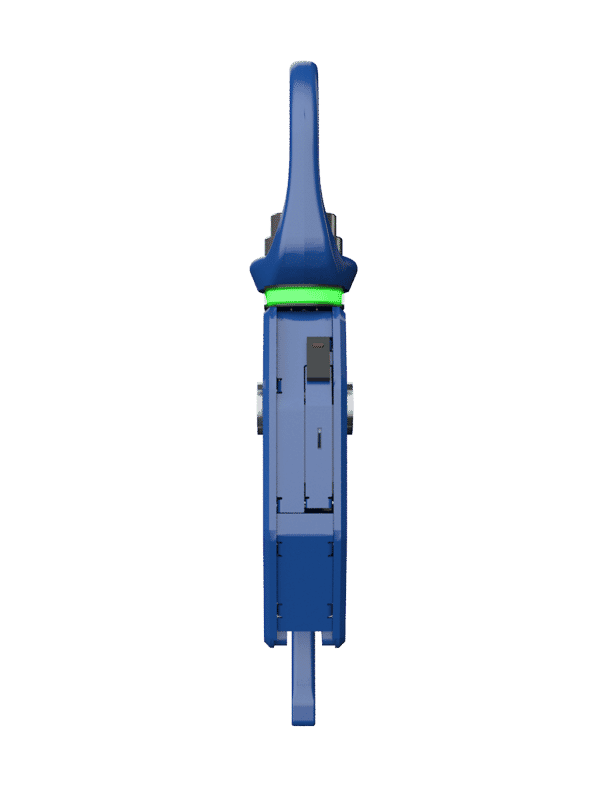

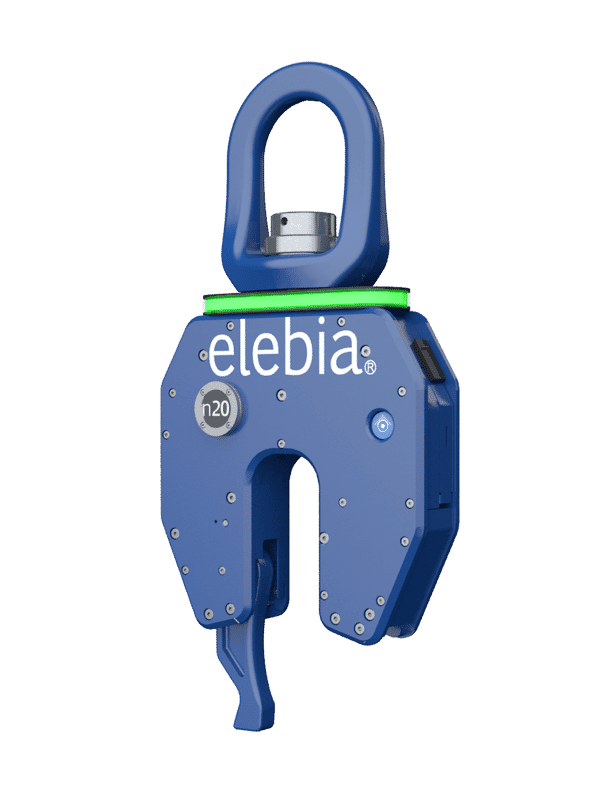

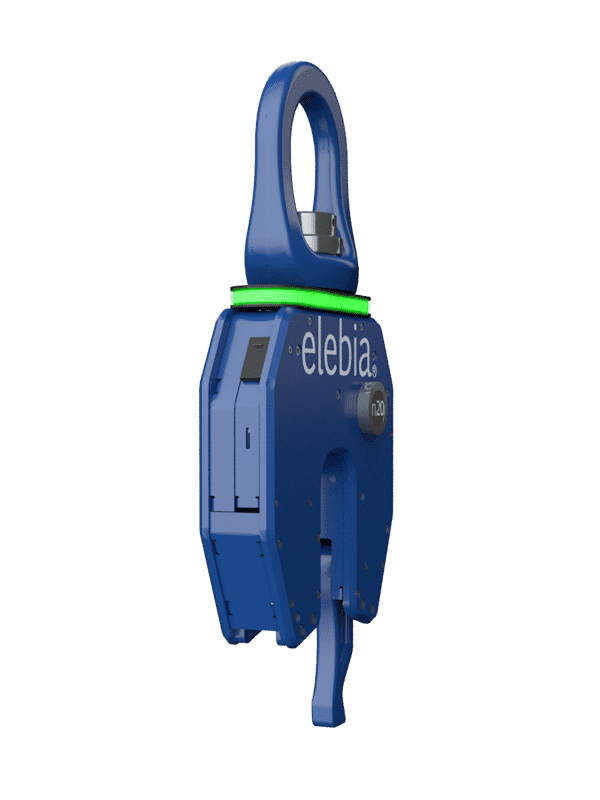

High-Brightness LED
Status Indicator *
In regular lifting operations with bell furnaces, the operator has a limited
line of sight and poor visibility as to the lifting hooks‘ position and engagement of the bell furnace.
The High-Brightness LED status indicator is an additional safety measure which shows the hook’s
status at all times with a bright 4 colour colour-code scheme visible from the operator’s position.

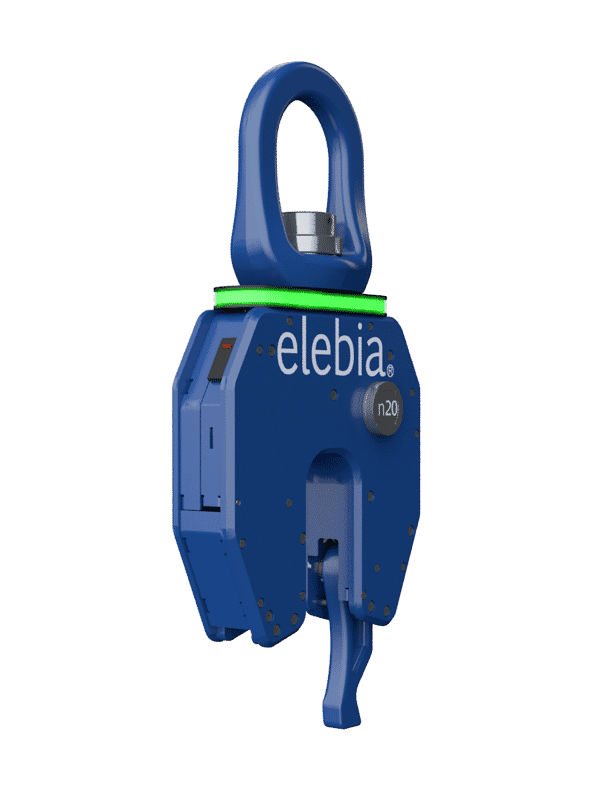

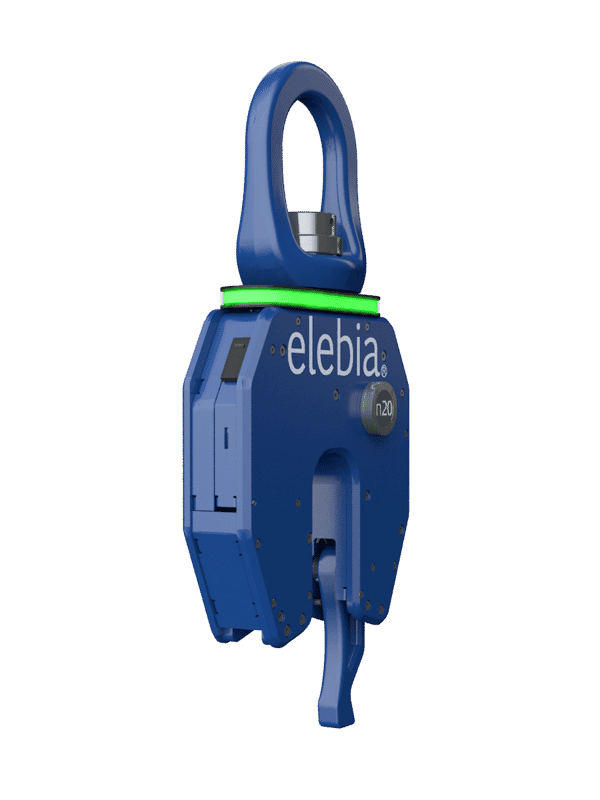

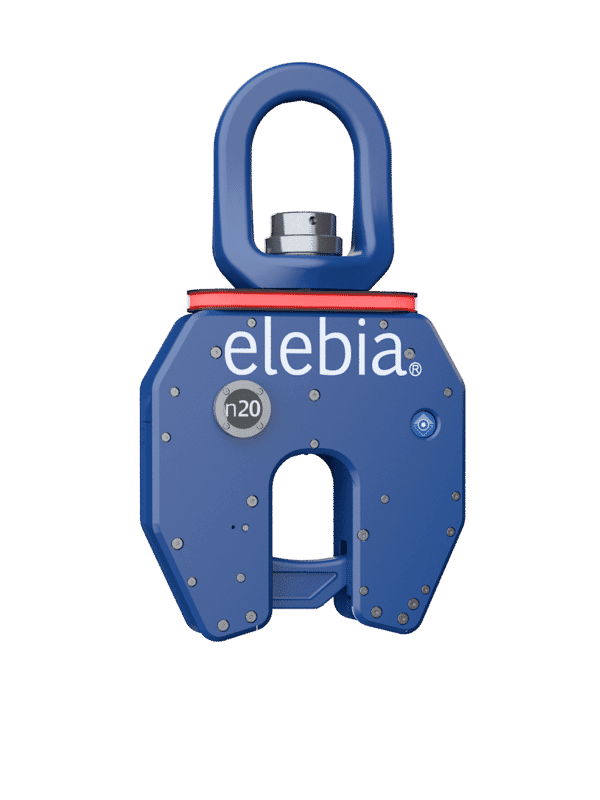

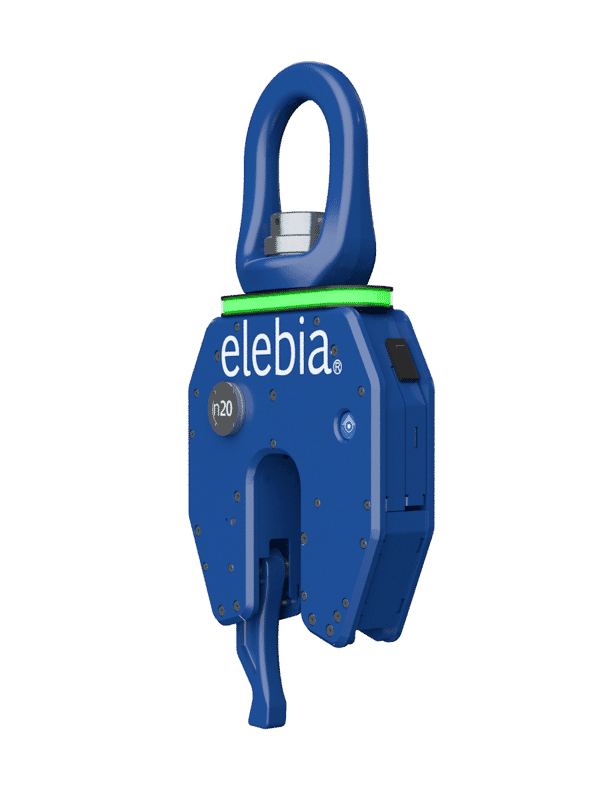

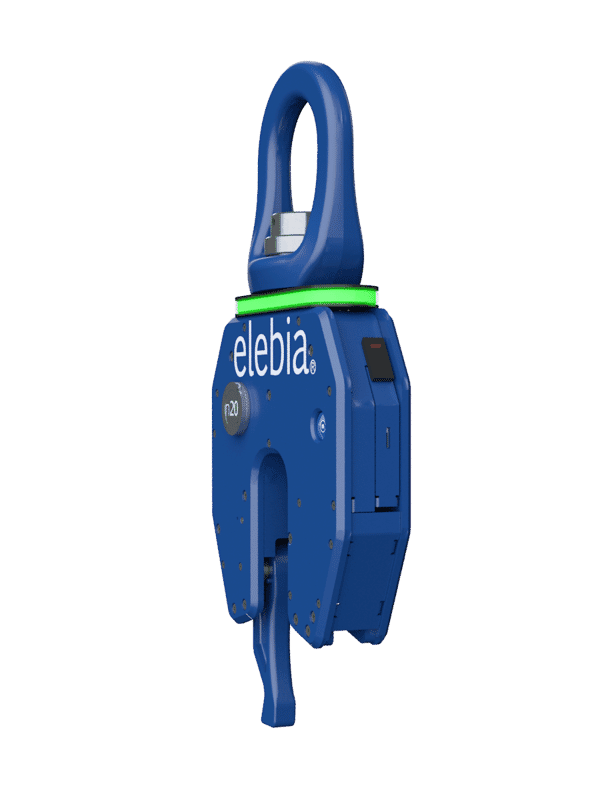

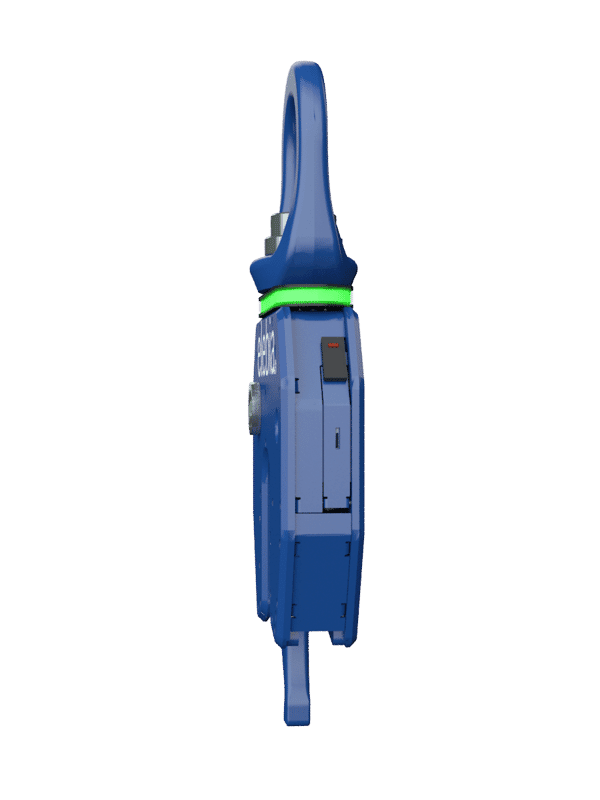

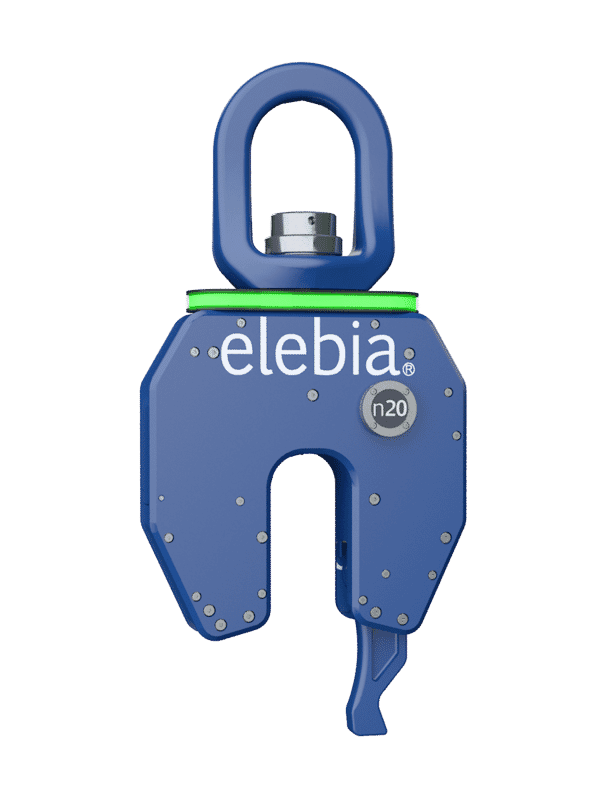

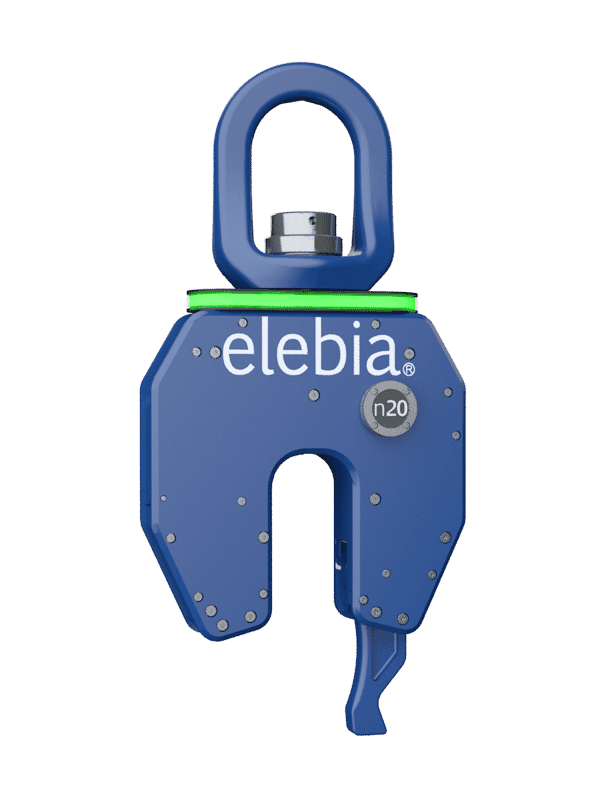

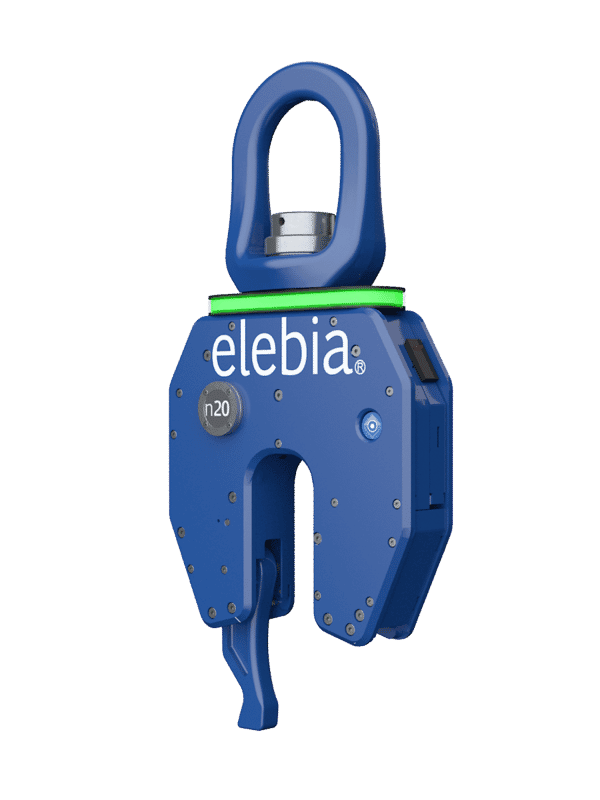

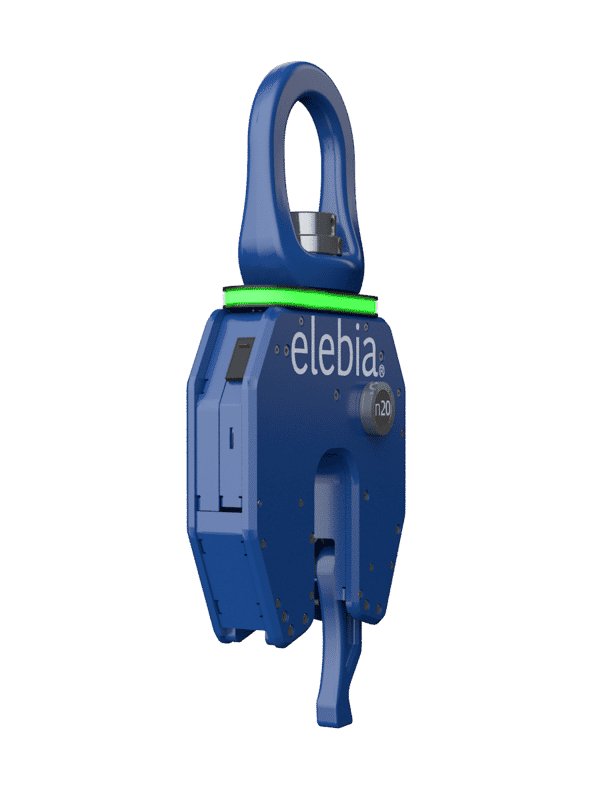

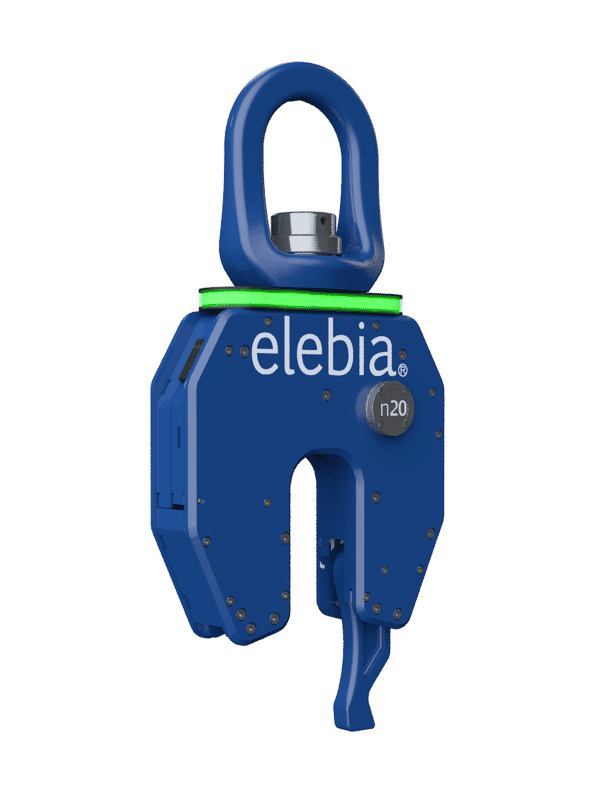

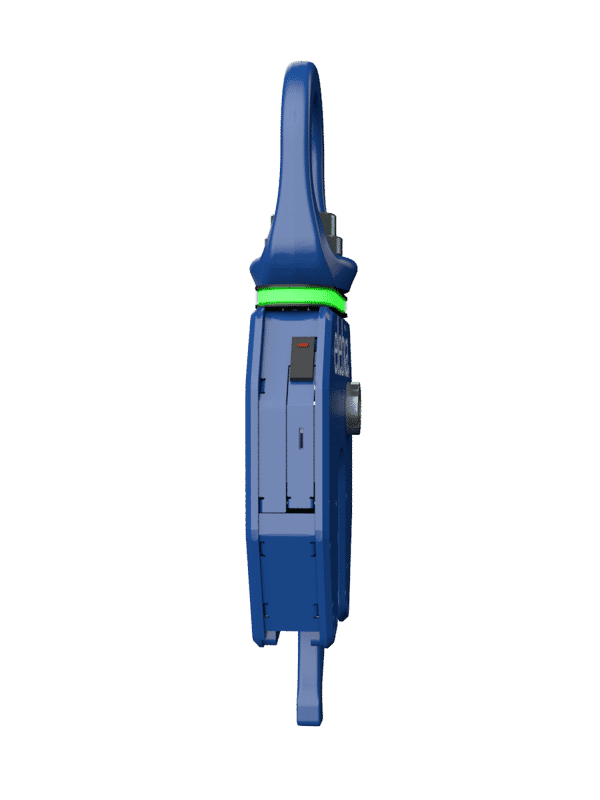

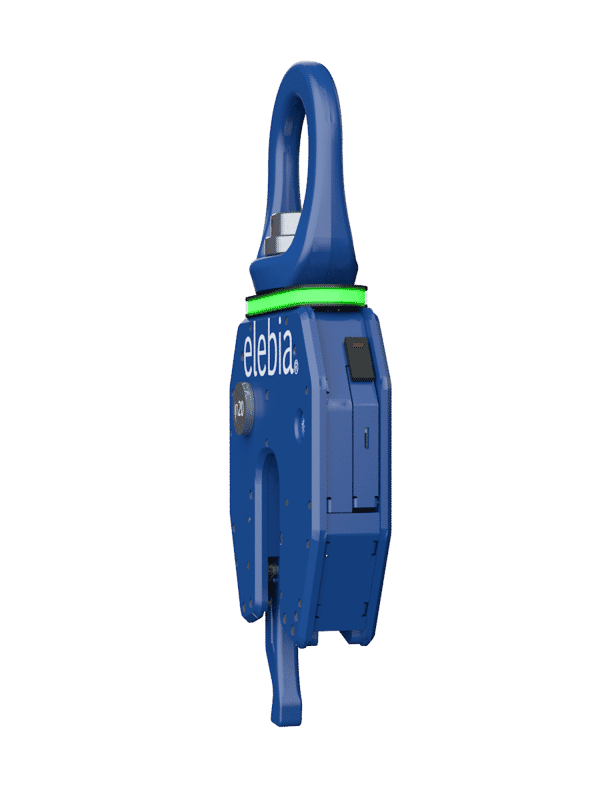

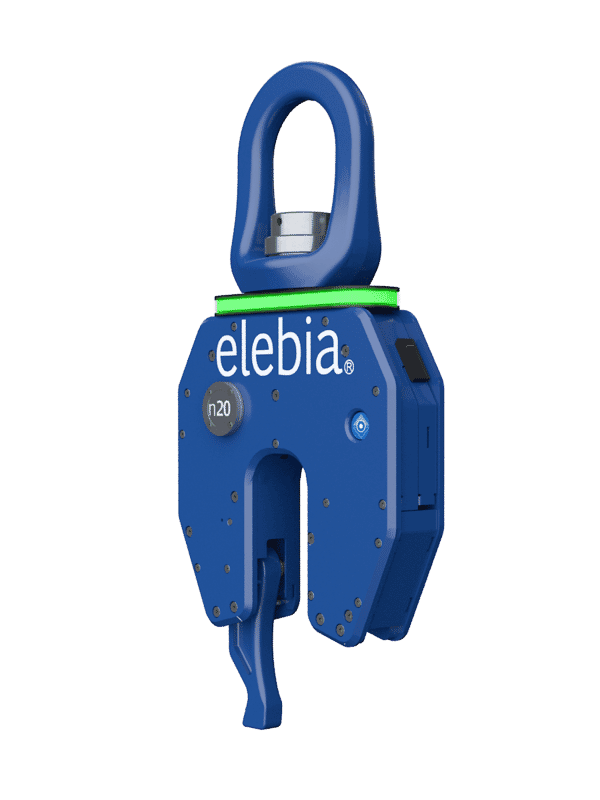

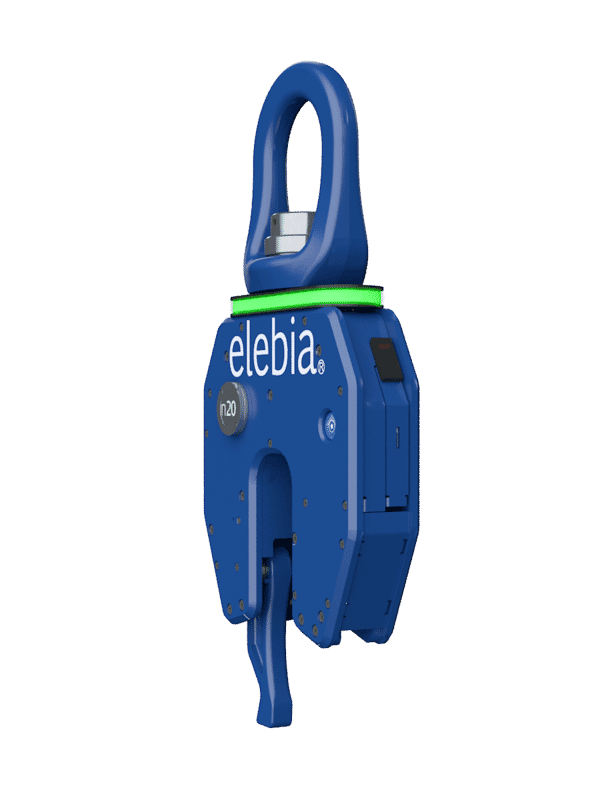

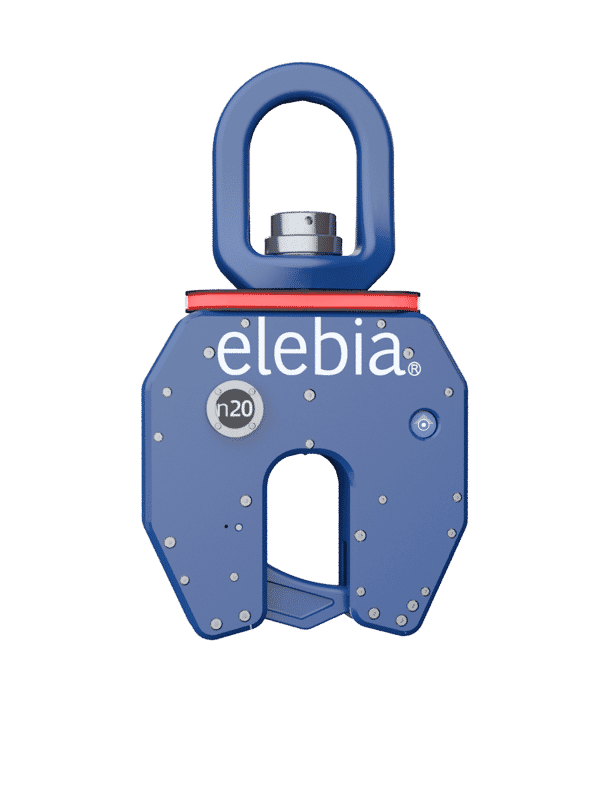

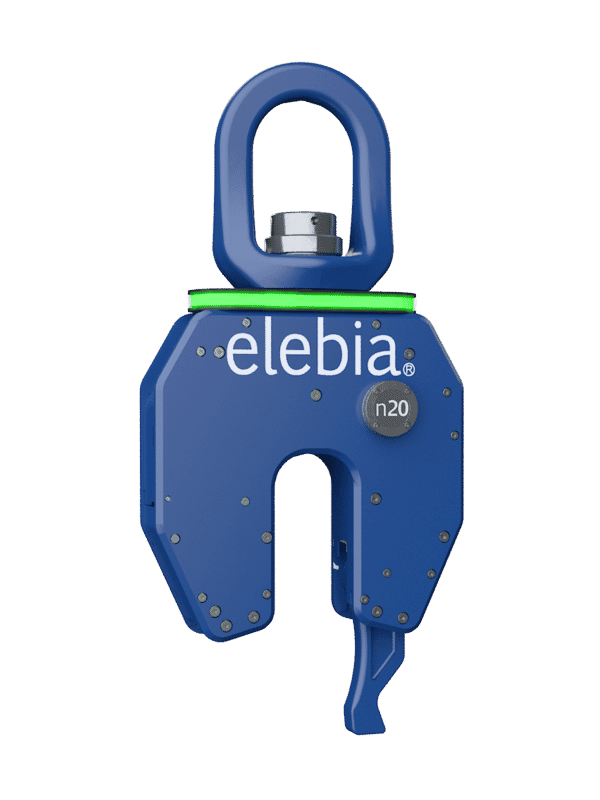

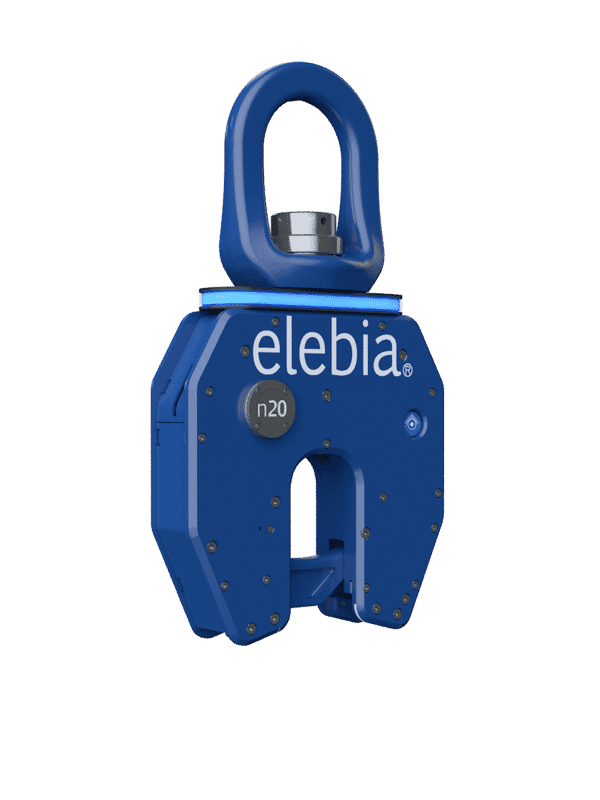

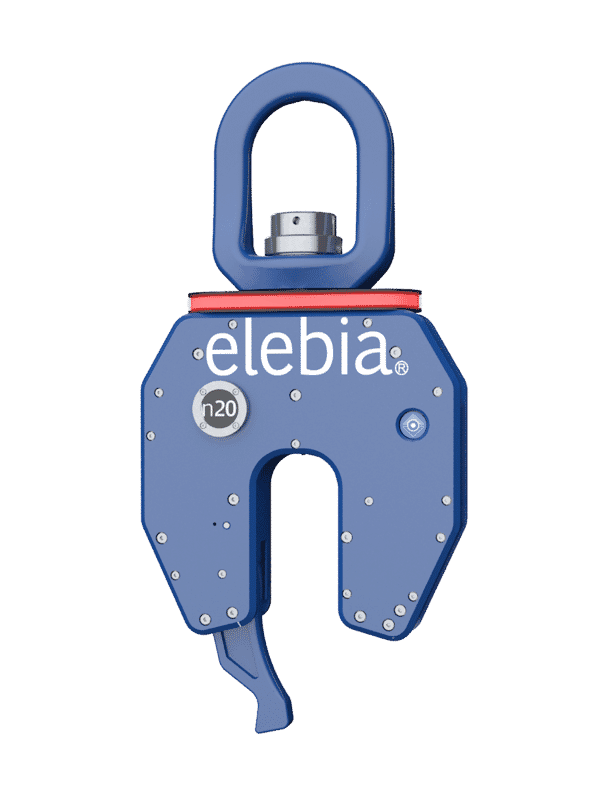

Green: Hook is Open / Release Load

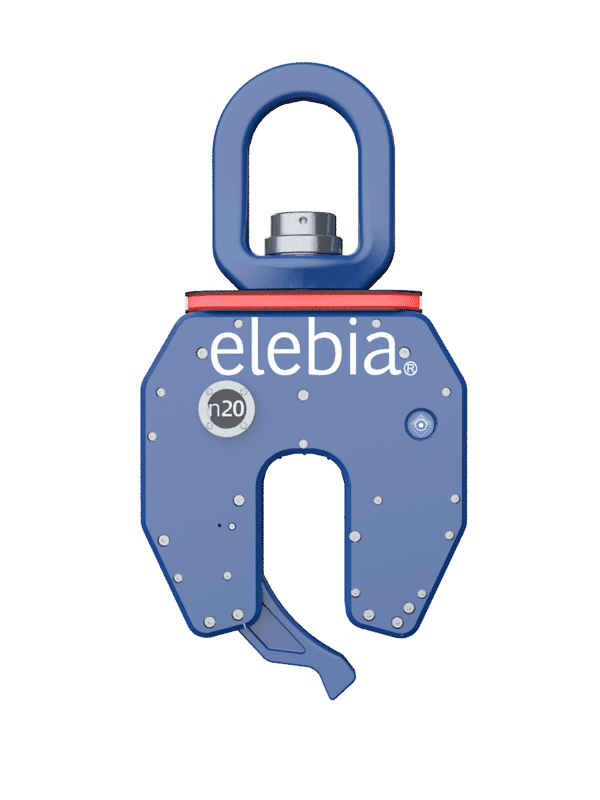

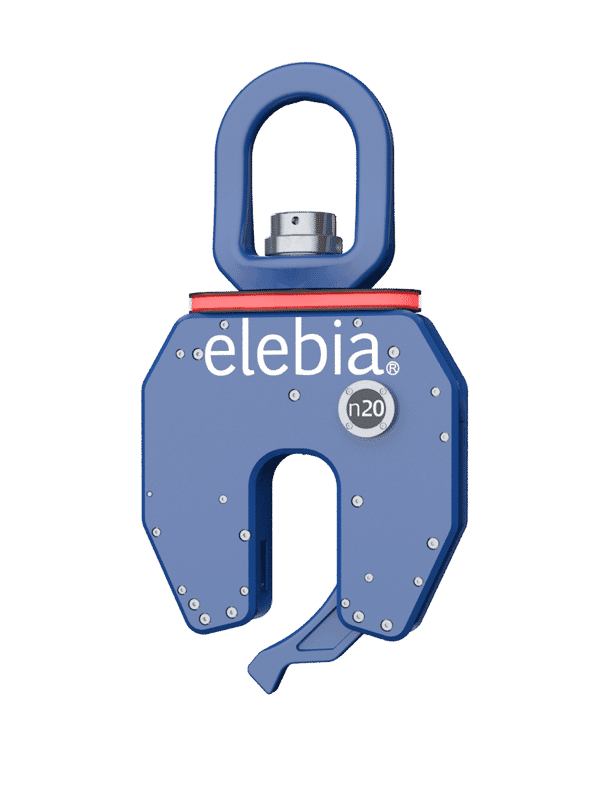

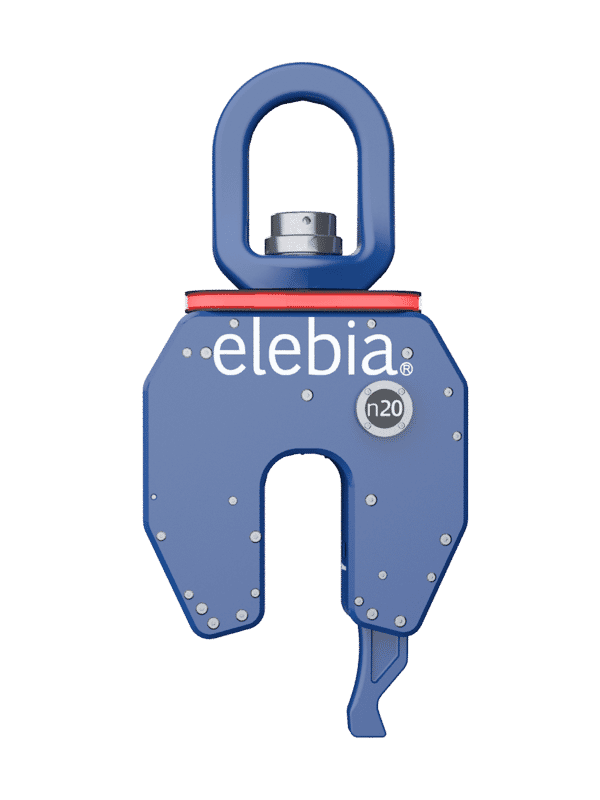

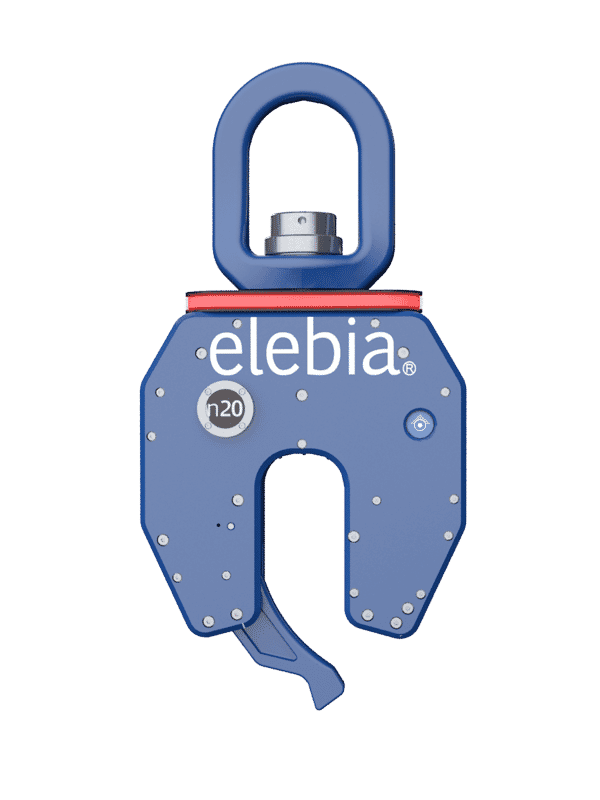

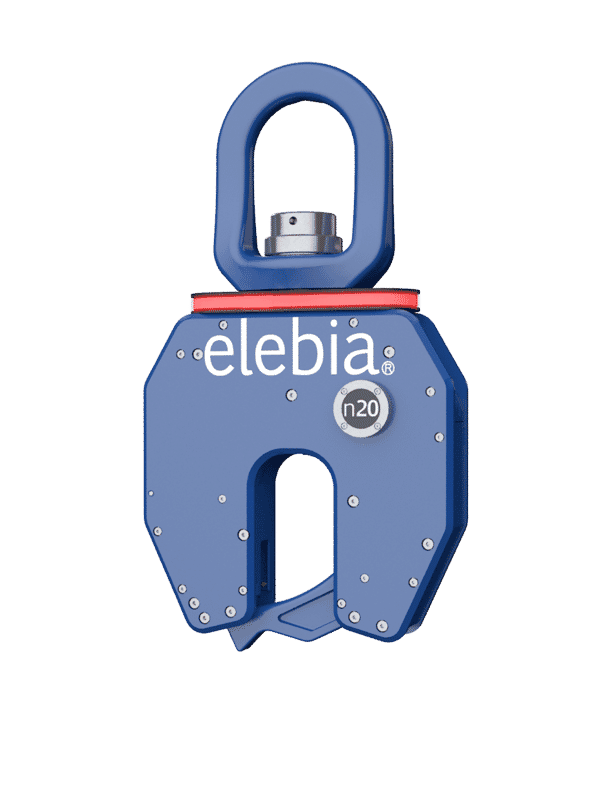

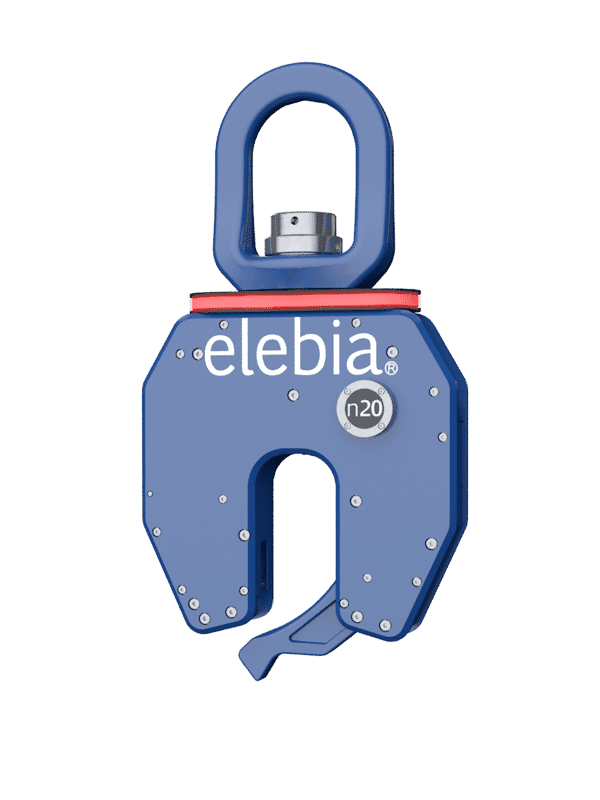

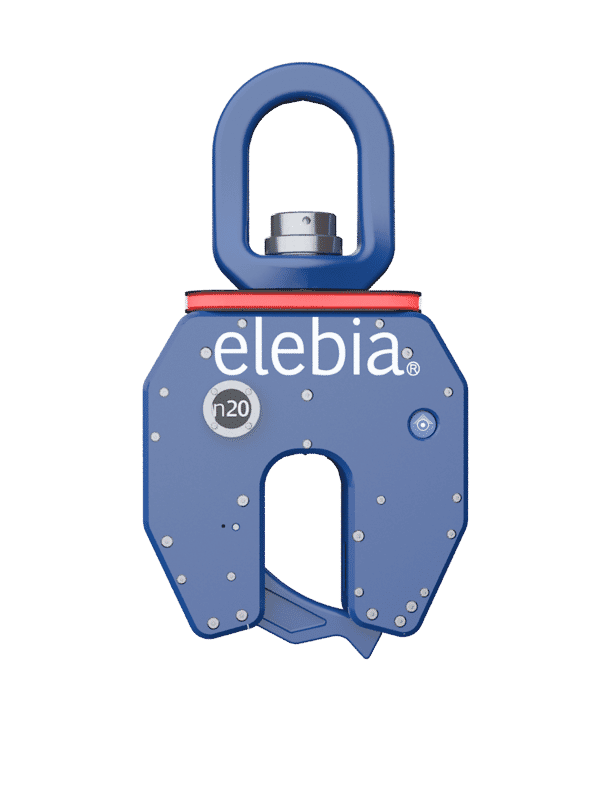

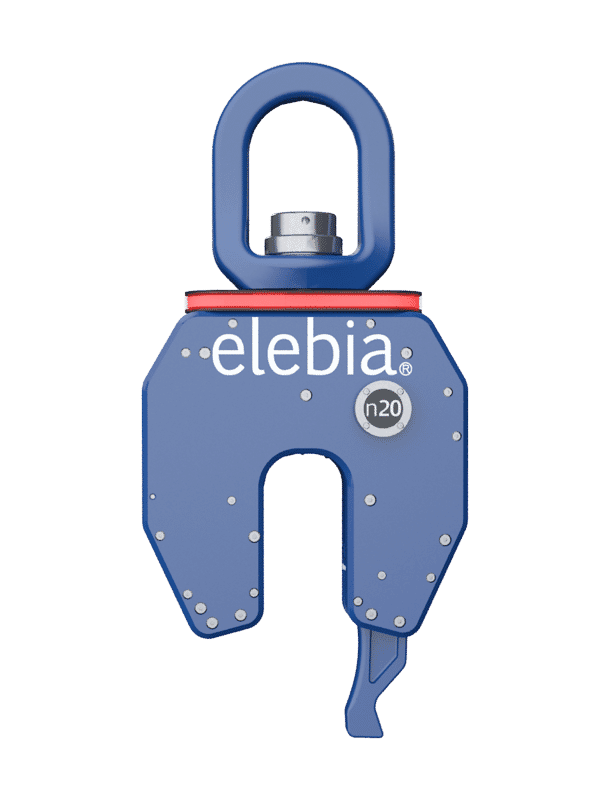

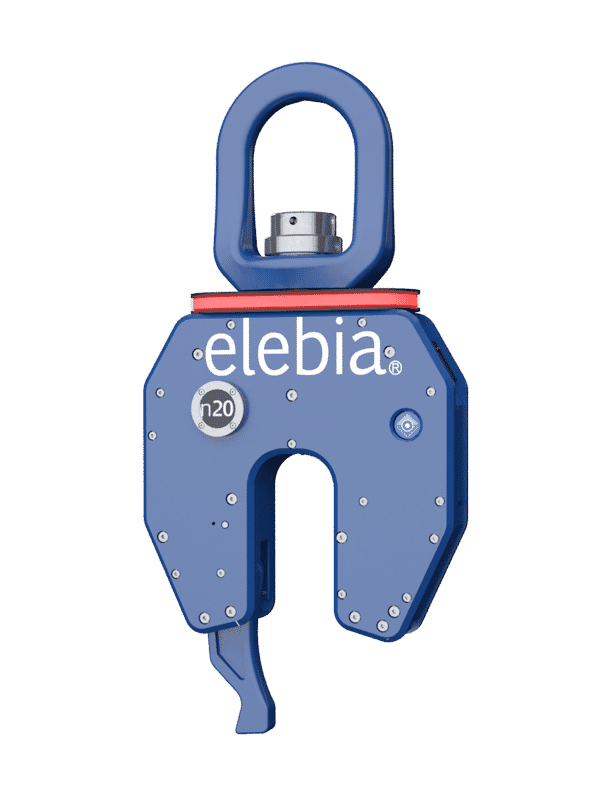

Red: Intermediate: Do Not Lift!

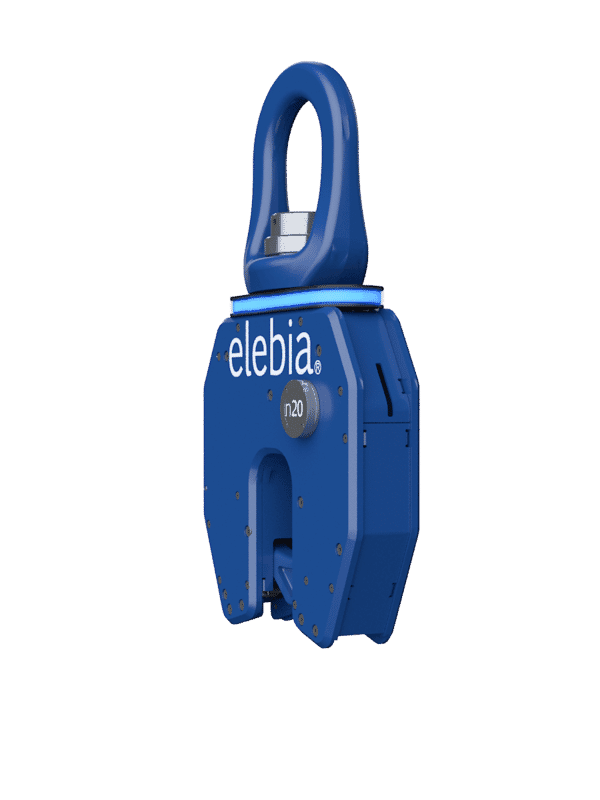

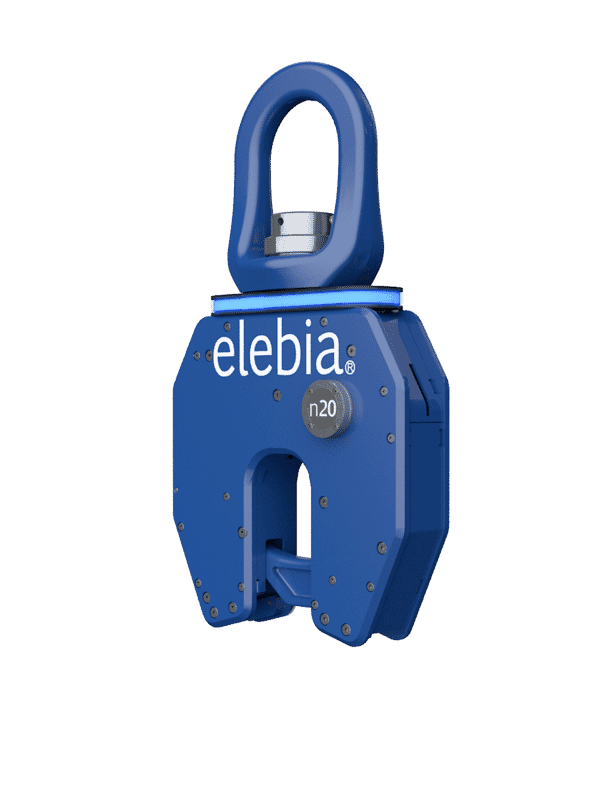

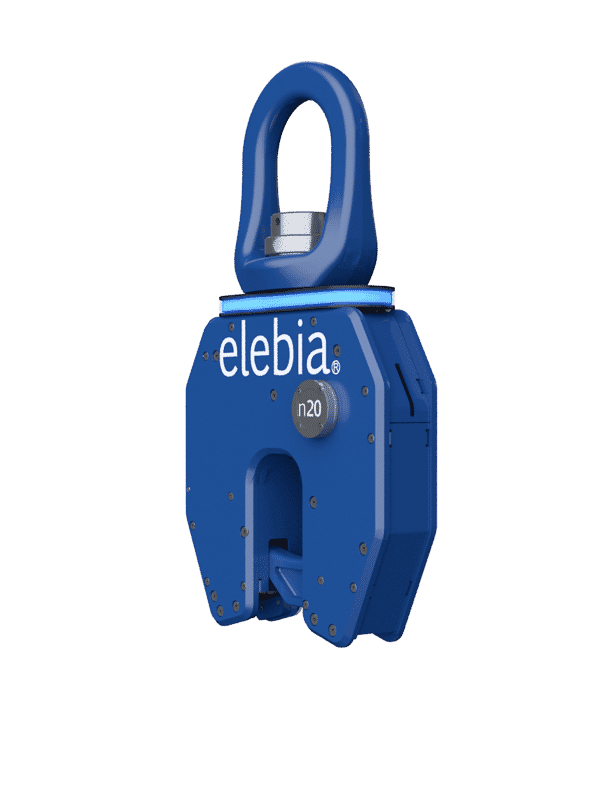

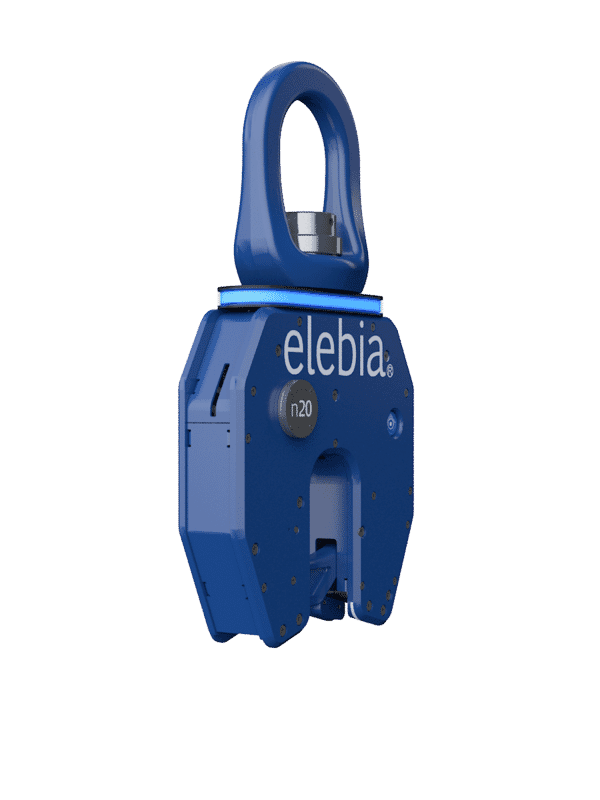

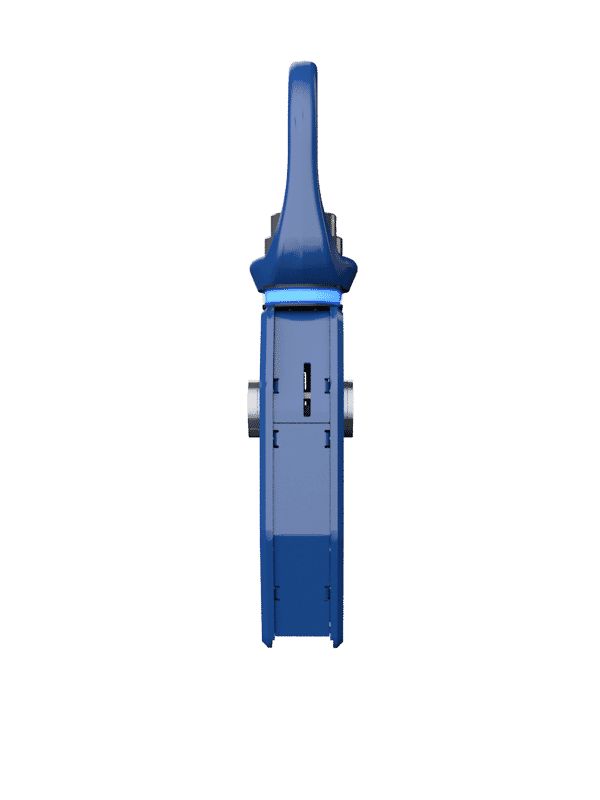

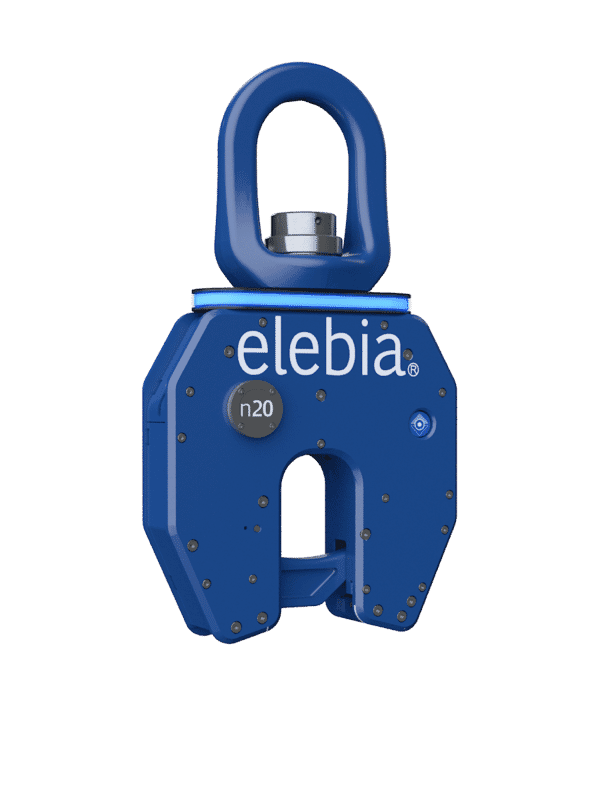

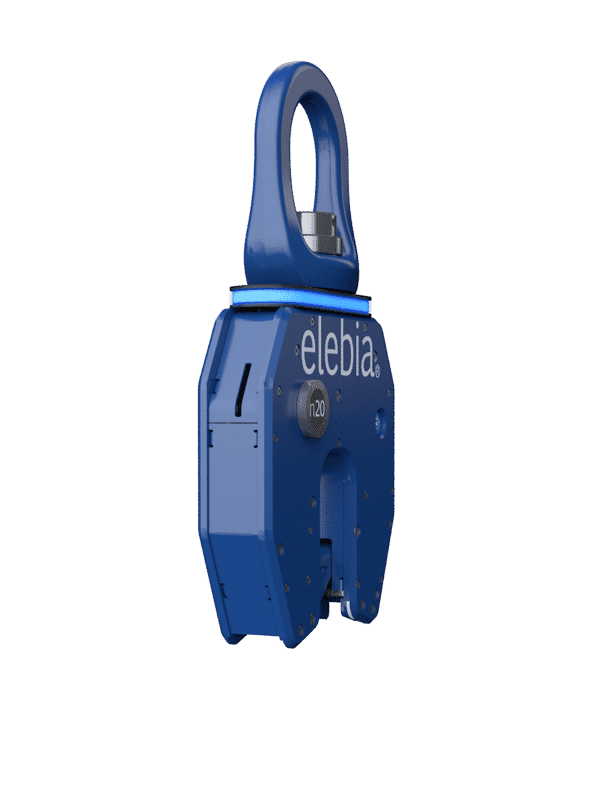

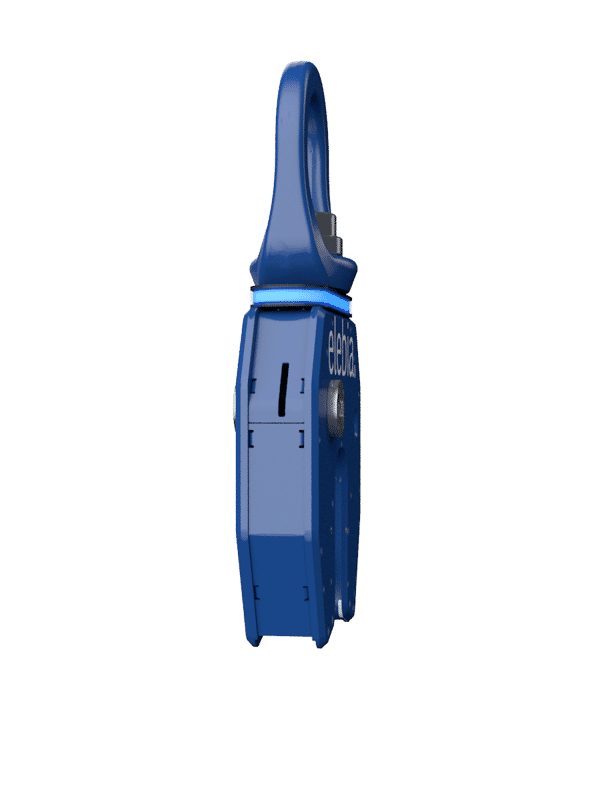

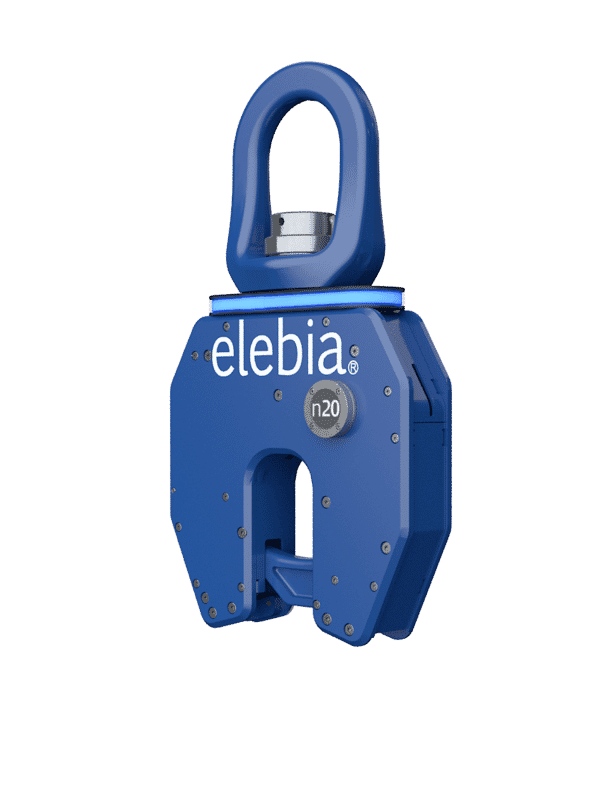

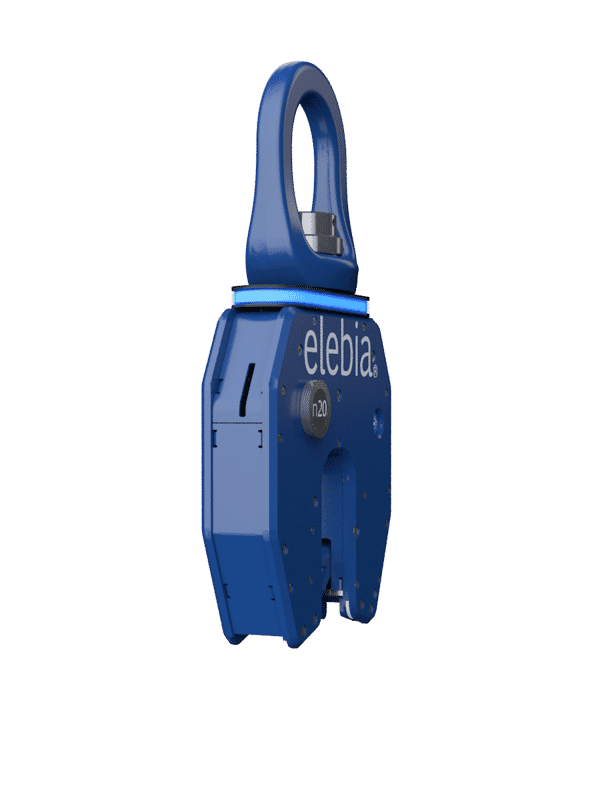

Blue: Hook is Closed / Lift & Manoeuvre Load
White: Low Battery
* This feature is optional
High-Capacity Battery
With the high-capacity battery, a simple 3 hour charge allows for
more than 3.000 cycles or over 250 hours in standby mode.
The 14 segment E-ink charge status display and rechargeable Li-Ion
technology guarantee an optimal autonomy and consumption of the battery.
Load Cell *
The NEO20 is equipped with a load cell to weigh the load that is being lifted.
This load cell is precise, reliable, rugged, compact and fully integrated into the
Hook, representing no increase in weight or dimensions of the unit.
The load cell in combination with the eMAX remote control transforms the
NEO20 into a precise weighing scale with advanced features.
* This feature is optional
Specifications
| Load Cell Type | Traction |
| Material | Stainless Steel |
| Protection | IP67 (EN60529) |
| Nominal Capacity (Ln) | 20,000 |
| Precision Class | 0.2% |
| Minimum Dead Load | 0% Ln |
| Service Load | 120% Ln |
| Ultimate Load | 400% Ln |
| Total Error | < ±0.2% Sn |
| Repeatability Error | < ±0.08% Sn |
| Temperature Effect: | |
| on zero | < ±0.01% Sn / 5 ºK |
| on sensitivity | < ±0.01% Sn / 5 ºK |
| Creep Error (30 min.) | < ±0.03% Sn |
| Temperature Compensation | -4 ºF to 122 ºF |
| Temperature Limit | -22 ºF to 158 ºF |
| Nominal Sensivity (Sn) | 1 ±0.25% mV/V |
| Nominal Input Voltage | 10V |
| Maximum Input Voltage | 15V |
| Input Impedance | 800 ±30 |
| Output Impedance | 700 ±5 |
| No Load Input | < ±2% Sn |
| Insulation Resistance | > 5,000 M |
| Maximum Deflection (at Ln) | 0.3 mm. |
Autoclose Mode *
A contact sensor detects when load is in position,
and the NEO20 closes automatically.
* This feature is optional
Laser Pointer *
The NEO20 carries a Laser Pointer as an optional feature.
It acts as a guide to perfectly place and set the hook
in the correct position when approaching the lifting point.
To activate it, simply press the button beside the battery slot.
* This feature is optional
Fail-safe Design
Impossible to release or drop the load while it is suspended on the hook.
Just like the evo range of automatic crane hooks and our automatic lifting clamps,
the automatic hook for bell furnaces is designed under a
fail-safe principle that makes it impossible to drop a suspended load.
Remote Controlled
Open and close the hook or receive real-time information of weight,
battery level, and other values of the lifting and manoeuvring operation.
The NEO20 bell furnaces hook can be paired to any of our remote controls.
Metal Tip *
A metal tip can be inserted to facilitate the NEO20’s positioning into a narrow space.
Fabricated from high-strength steel, it is reinforced to protect the the hook against impacts.
* This feature is optional
Heat Vest
The Heat Vest is fabricated with a three-layered composite of Fiberglass S.S.,
high-performance Pyrogel® XTE aerogel insulation and Kaowool 1600 paper.
After the external fibreglass fabric, the Kaowool 1600 paper is placed and acts as thermal barrier.
The aerogel insulation is placed afterwords, closest to the NEO20 hook,
to deliver superior thermal protection against corrosion under insulation.
ARC50 Lifting Point
The ARC 50 by Codipro is a lifting point specially designed for
handling heavy loads, and particularly suited for lifting moulds.
It has been conceived to be used with the NEO20 hook,
although it can also be used in combination with other hooks,
shackles with a diameter of less than 100mm and also with the NEO50 hook.
Manual Override
If there’s ever the need to manually override NEO20’s
electronics, the process is very simple.
1. Insert a 6mm hex key into the slot/groove and push the key upwards.
2. Repeat these steps a couple of times until the LED status indicator is red.
Ground Level
At Height
Other Lifting Points
The NEO20 is not only the perfect lifting solution for Bell Furnaces, it is also
ideal for lifting and transferring oversized lifting points (up to 100mm Ø)
such as rods between plates, holes on a plate, chain slings,
lifting bails and other oversized lifting points.
Check out all of our NEO Heavy Duty Lifting Hooks
Regulatory Standards
The NEO20 hook certifies with the following regulatory standards:
| ETSI EN 303 446-1 V1.1.0 | EN 10204 3.1.B | UNE-EN 60730-1:2013 |
| ETSI EN 303 446-2 V1.1.0 | UNE-EN ISO12100:2012 | UNE-EN 61000-6-4:2007 |
| ETSI EN 300 220-1 V3.1.1 | UNE-EN 1050 | UNE-EN 61000-6-2:2006 |
| ETSI EN 300 220-2 V3.1.1 | UNE-EN 13135:2013 | UNE-EN 60204-1:2007 |
Directive on Machine Safety (D2006/42/EC).
EMC Directive (2014/30/EU).
Low Voltage Directive (2014/35/EU).
Radio Equipment Directive (2014/53/EU).
Assurance of Production Quality in accordance with ISO9001.
ARIB Construction Design Certification Number 203-JN0689.
FCC Identifier 2ACLHEVO for Equipment Class: Digital Transmission System.
Each mechanism is delivered with the CE stamp and a declaration of CE conformity.
elebia is a member of F.E.M. (European Federation of Materials Handling).
